12th Gen J6412 Fanless Industrial Computer Dual Lan Dual RS232

Name: 12th Gen J6412 Fanless Industrial Computer Dual Lan Dual RS232
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: IEXP-342
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SMATIPC
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	IEXP-342

Detail Information

Place of Origin:

China

Brand Name:

SMATIPC

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

IEXP-342

Product Collection:

Intel Celeron Processor J Series

Processor:

J6412

Memory:

1 X DDR4 3200 Max 32 GB

Ethernet:

2 X RTL8111H Ethernet

Graphics:

Intel(R) UHD Graphics

CPU Cores:

Quad Core

Highlight:

High Light

Highlight:

j6412 fanless industrial computer

fanless industrial computer dual lan

12th fanless mini computer

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-7Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

12th gen J6412 Fanless Industrial Computer Dual Lan Dual RS232

Product Description:

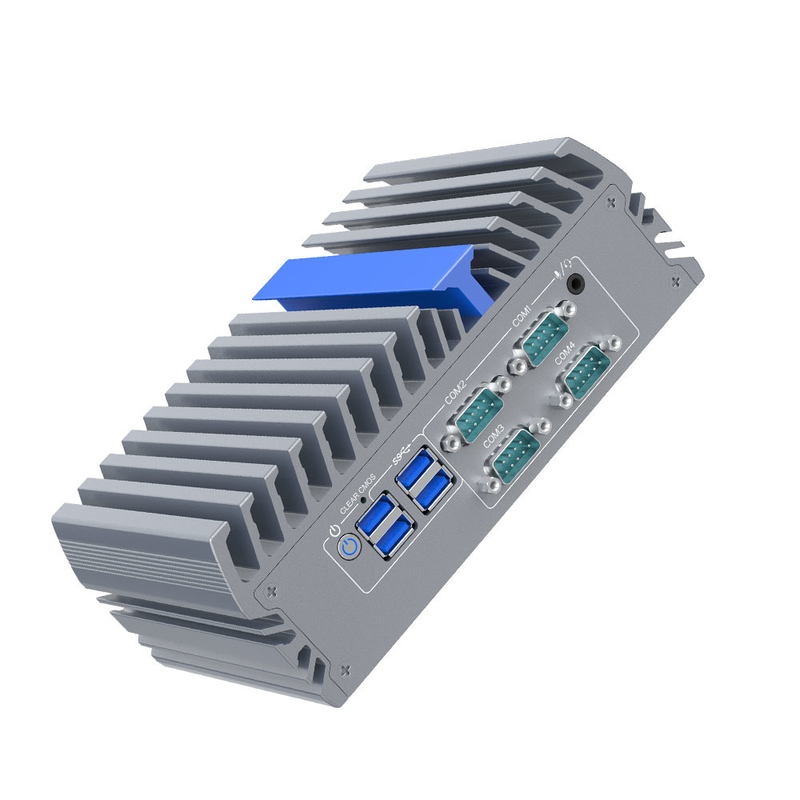

The IEXP-342 J6412 Fanless Industrial Computer

Support 2 x HD-Ml+VGA Three display output synchronously.
-2 x RJ45 Giga LANs and 2 x RS232COM.
-Full Aluminum Alloy silver +blue color shell,Exquisite production craft on outsidedesignwith high quality and stable performance.slim dimension 186 x 127 x 66MM.
-Fanless system without cooling fan, noany noise, work as long as 24 hours.
-Low consumption TDp only 10w, savemuch energy and eco-friendly.
-Can be mounted back of monitor or wallby the optional VESA mount.

Technical Parameters:

Parameter	IEXP-342		Storage
Processor	Onboard Intel J6412(quad core quad threads,Max Turbo 2.6 GHz)		M.2	1 x M.2 2280 M-key slot(support SATA & PCIE3.0X1, NVME)
Chipset	Elkhart Lake		SATA	1 x 2.5 inch SSD slot
Memory	1 x DDR4 3200 , max 32 GB		Expansion slots
Graphics Card		Integrated Intel(R) UHD Graphics (support synchronous and asynchronous triple display)	Mini PCIE	1 x full length Mini PCIe slot(PCIE&USB2.0 4G/WIFI/BT optional), Nano-SIM slot
Display port	2 x HD-MI Resolution up to 4096 x 2160 @ 60Hz		Dimension
	1 x VGA Resolution up to 1920 x 1080 @ 60Hz		Size	186 x 127 x 66 mm
Ethernet			weight	1.36 kg
Internet port	2 x Intel RTL8111H Gigabit Ethernet		Installation	VESA , Wall-mounted, Din-rail (optional)
I/O			Environment
USB	4 x USB 3.0, 2 x USB 2.0		Operating Temperature	-20℃ to 60℃, Surface air flow
COM	4 x COM (COM1/2 RS232/485 optional)		Operating Humidity	5% to 95% Non-condensing state
Audio	1 x Line-out/Mic-in, two in one audio		Other Function	Power on, Wake on LAN, PXE ,TPM2.0
Power supply
Power Input	1 x DC 12V		Application	Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc

Applications:

SMATIPC the IEXP-342, a powerful J6412 Fanless Industrial Computer that is designed to entertainment, office, surveillance, bank, school, hospital, POS, KTV, etc..
