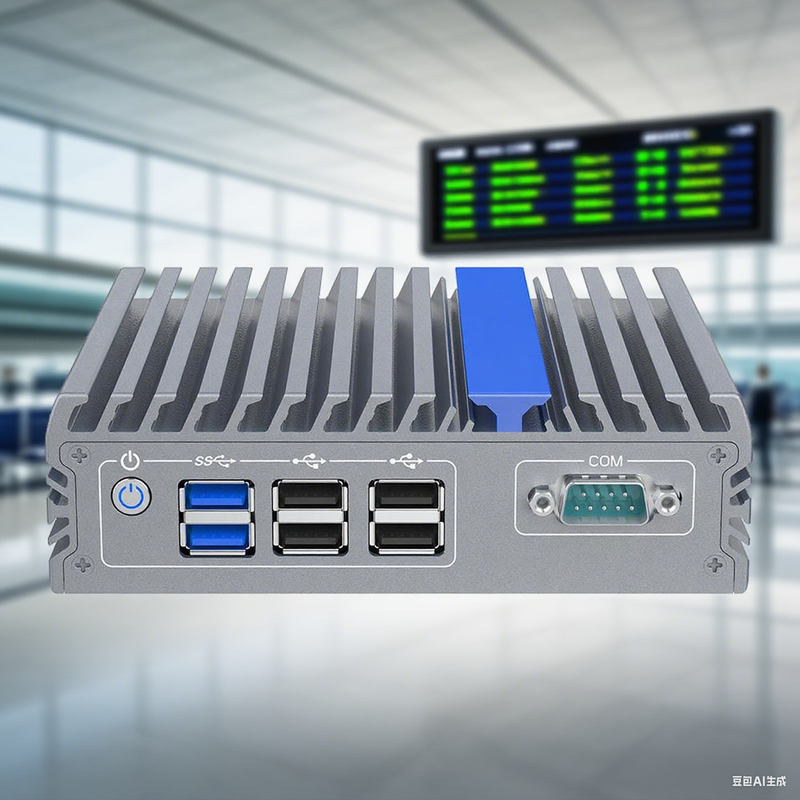

Low Power J3710 Mini PC for Home Automation & IoT Gateway

Name: Low Power J3710 Mini PC for Home Automation & IoT Gateway
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: IEXP-302
Price: 90.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SMATIPC
Certification:	CE, ROHS,FCC,ISO9001
Model Number:	IEXP-302
Document:	IEXP-302 Ver 1.0 .pdf

Detail Information

Place of Origin:

China

Brand Name:

SMATIPC

Certification:

CE, ROHS,FCC,ISO9001

Model Number:

IEXP-302

Document:

IEXP-302 Ver 1.0 .pdf

CPU:

J3710

Type:

Mini PC For Small Office & Networking

Display Port:

2x HD , 1x DP

Graphics:

Intel HD Graphics

Size:

142x126.5x42 Mm

Weight:

0.74 Kg

Highlight:

High Light

Highlight:

Low Power Mini PC

Mini PC for Home Automation

J3710 Mini PC

Trading Information

Minimum Order Quantity:

Price:

85-95

Packaging Details:

Each pc for one neutral box

Delivery Time:

5-7 work days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 PCS/Month

Product Description

Low Power J3710 Mini PC for Home Automation & IoT Gateway

Build the ultimate home automation hub or IoT gateway. This headless mini PC is equipped with a COM (RS232) port for integrating with legacy smart devices and an optional CAN bus for industrial-grade monitoring. Its low power consumption and always-on reliability are perfect for running home assistant software, security systems, and data logging 24/7. The optional Wi-Fi/BT and 4G modules provide flexible connectivity options to manage all your smart devices from a single, centralized system.

Key Specifications

Attribute	Value
CPU	J3710
Type	Mini PC For Small Office & Networking
Display Port	2x HD, 1x DP
Graphics	Intel HD Graphics
Size	142x126.5x42 mm
Weight	0.74 kg

Technical Parameters

Processor

Model: J3710
Total Cores: 4
Total Threads: 4
Burst Frequency: 2.64 GHz
Base Frequency: 1.60 GHz

Memory & Storage

RAM: 1xDDR3L 1600MHz SODIMM, max 8 GB
Storage: 1xMINI PCIE slot (support SATA), 1x2.5 inch HDD

I/O Ports

HDMI Port: 2 (Resolution 4096 x 2160 @ 24Hz)
DP Port: 1 (Resolution 4096 x 2160 @ 30Hz)
LAN Port: 2x RTL8111H Gigabit
USB 3.0: 2 ports
USB 2.0: 4 ports
COM: 1 (only RS232)
Audio: 1xLine-out / Mic Two-in-one
Power supply: 1xDC 12V input

Work Environment

Temperature: -20℃~ +50℃, Surface air flow
Humidity: 5%~95% Non-condensing state
