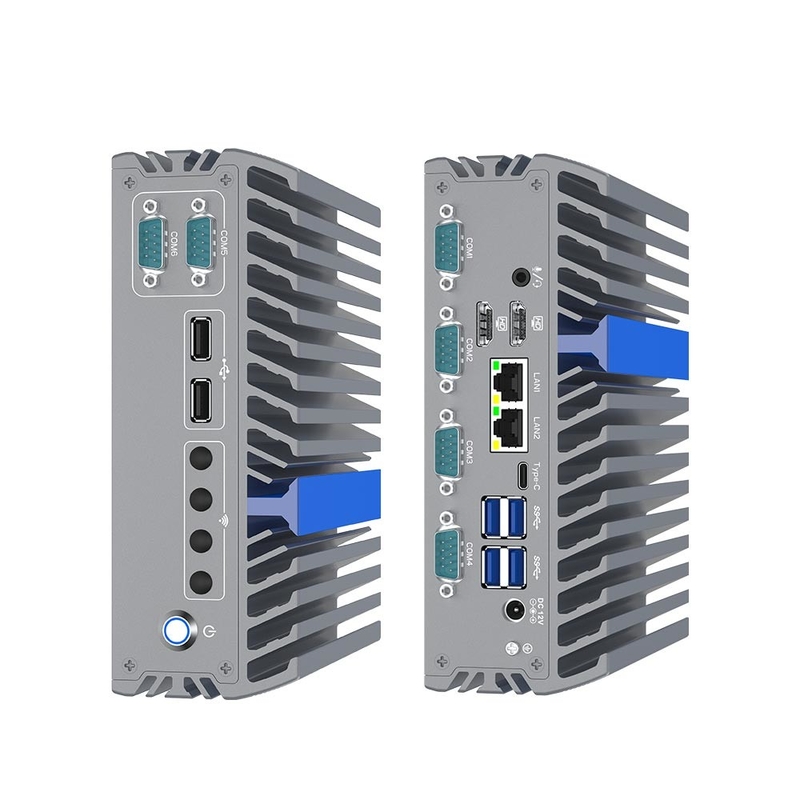

Industrial PC Embedded N100 6 Com 2.5 Gb Ethernet Industrial Computer Fanless

Name: Industrial PC Embedded N100 6 Com 2.5 Gb Ethernet Industrial Computer Fanless
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: IEXP-322
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Smatipc
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	IEXP-322
Document:	IEXP-322 Ver 1.0.pdf

Detail Information

Place of Origin:

China

Brand Name:

Smatipc

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

IEXP-322

Document:

IEXP-322 Ver 1.0.pdf

Processor:

Intel N100

Total Threads:

Ethernet Type:

Intel I226-V

Ethernet:

2 X 2.5GB

Storage:

1 X M.2 2280 , SATA

Type-C Resolution:

Up To 3840 X 2160 @60Hz

Application:

Industrial Automation, Medical, Transportation, Logistics, Warehousing, E-education.,etc

Operating Temperature:

-20℃ To 60℃

Highlight:

High Light

Highlight:

industrial pc embedded

ethernet industrial computer fanless

embedded industrial computer fanless

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-7Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

Industrial Pc Embedded N100 6 Com 2.5 Gb Ethernet Industrial Computer Fanless

Product Description:

Intel N100 Fanless Industrial Pc Embedded is the perfect for machine vision applications.
Quad core quad thread,Max Turbo 3.4 GHz
Operating Humidity: 5% To 95%
Ethernet: 2.5Gbe
I/O Ports: USB 3.0, HD-MI, Type-C, COM RS232
Ram Type: DDR5 x 1
Dimensions: 7.3 x 5.5 x 2.6 Inches

Technical Parameters:

Parameter		Storage
Processor	Intel N100(quad core quad thread,Max Turbo 3.4 GHz)	M.2	1x M.2 2280 M-key slot(support SATA )
Chipset	Alder Lake-N	SATA	1x 2.5 inch SSD slot
Memory	1x DDR5 4800 slot, Max 16 GB	Expansion slots
Graphics Card		Mini PCIE	1 x Full length Mini PCIe slot(PCIE&USB2.0 ,4G/WIFI/BT optional), Nano-SIM slot
Graphics Card	Intel(R) UHD Graphics	M.2	1x M.2 2230 E-key slot( support WiFi / BT)
Display port	2 x HD-MI , 1x Type-C	Size/weight
		Dimension	7.3x 5.5 x 2.6 inch
Ethernet		weight
Internet port	2 x Intel I226-V 2.5G Ethernet	Installation	VESA , Wall-mounted, Din-rail (optional)
I/O		Environmental
USB	4x USB 3.0, 2x USB 2.0	Operating Temperature	-20℃ to 60℃, Surface air flow
COM	6 x RS232 COM (standard)	Operating Humidity	5% ～ 95% Non-condensing state
Audio	1 x Line-out/Mic-in, two in one audio	Other Function	Power on when there is electricity, network wake up timed startup, PXE startup ,TPM2.0
Power supply		Other Function
Power Input	1 x DC(5.5 x 2.5mm), support 12V input	Application	Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc

Applications:

The IEXP-322 Model of 12th Gen Intel Alder Lake-N N100 Industrial Pc Embedded N100 is designed to operate in environments with a humidity range of 5% to 95%. This makes it ideal for use in a wide range of industrial settings, including factories, warehouses, and other harsh environments. It can be used as a control center for factory automation, as a data acquisition system in research and development, or as a digital signage player in retail environments.
