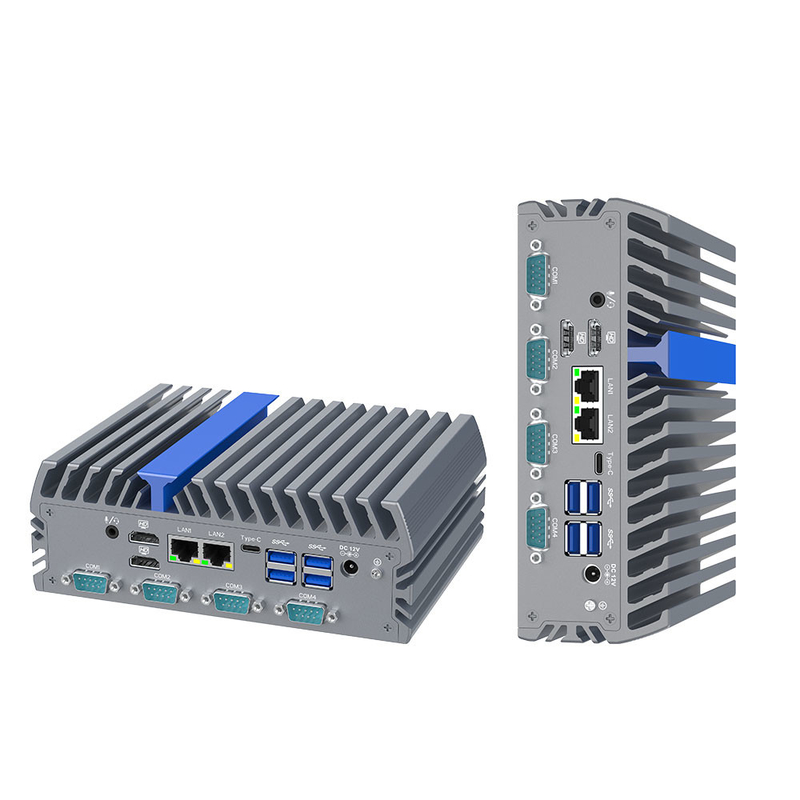

Fanless Industrial Computer N100 Processor with Triple Display Port

Name: Fanless Industrial Computer N100 Processor with Triple Display Port
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: IEXP-322
Availability: InStock

Product Details:

Place of Origin:	China
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	IEXP-322
Document:	IEXP-322 Ver 1.0.pdf

Detail Information

Place of Origin:

China

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

IEXP-322

Document:

IEXP-322 Ver 1.0.pdf

Processor:

12th Gen Intel Alder Lake-N N100

RAM:

Up To DDR5 16 GB

HD-MI:

Type-c:

Resolution:

Up To 3840 X 2160 @60Hz

COM:

6 X RS232 COM

USB:

4 X USB 3.0, 2 X USB 2.0

Power Input:

DC 12V

Highlight:

High Light

Highlight:

hd-mi fanless industrial computer

fanless industrial computer n100

hd-mi industrial computer fanless

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-7Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

Fanless Industrial Computer N100 Processor with Triple Display Port

Product Description:

The IEXP-322 Fanless Industrial Computer features an Intel N100 processor, providing quad-core processing power with a turbo frequency of 3.4GHz , it support conntect to triple monitors, two HD-mI display port ,one Type-c providing high-speed connectivity for peripherals and other devices. also includes a M.2 2280 M-key slot that supports SATA, providing flexible storage options. This allows the system to be configured to meet specific industrial computing needs.

Technical Parameters:

Parameter		Storage
Processor	Intel N100(quad core quad thread,Max Turbo 3.4 GHz)	M.2	1x M.2 2280 M-key slot(support SATA )
Chipset	Alder Lake-N	SATA	1x 2.5 inch SSD slot
Memory	1x DDR5 4800 slot, Max 16 GB	Expansion slots
Graphics Card		Mini PCIE	1 x Full length Mini PCIe slot(PCIE&USB2.0 ,4G/WIFI/BT optional), Nano-SIM slot
Graphics Card	Intel(R) UHD Graphics	M.2	1x M.2 2230 E-key slot( support WiFi / BT)
Display port	2 x HD-MI	Size/weight
	1 x Type-C	Dimension	7.3x 5.5 x 2.6 inch
Ethernet		weight
Internet port	2 x Intel I226-V 2.5G Ethernet	Installation	VESA , Wall-mounted, Din-rail (optional)
I/O		Environmental
USB	4x USB 3.0, 2x USB 2.0	Operating Temperature	-20℃ to 60℃, Surface air flow
COM	6 x RS232 COM (standard)	Operating Humidity	5% ～ 95% Non-condensing state
Audio	1 x Line-out/Mic-in, two in one audio	Other Function	Power on when there is electricity, network wake up timed startup, PXE startup ,TPM2.0
Power supply
Power Input	1 x DC(5.5 x 2.5mm), support 12V input	Application	Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc

Applications:

The IEXP-322Fanless Industrial Computer is such as factory automation, machine vision, and edge computing. It can also be used in harsh environments where conventional computers cannot withstand extreme temperatures, dust, or vibration.
