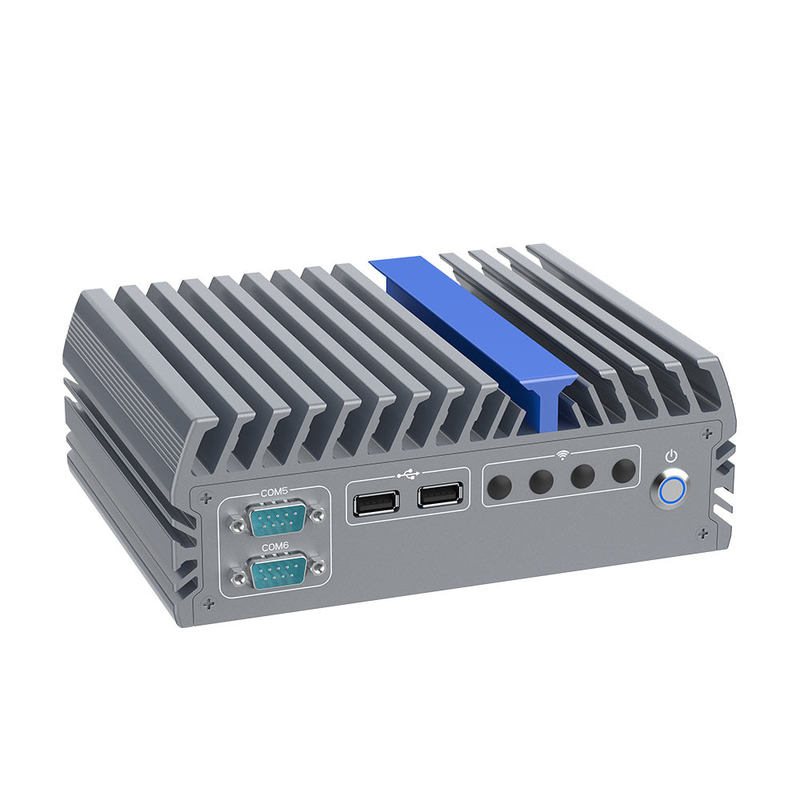

Intel N100 Rugged Industrial PC 6 USB 6 COM Wall Mounted Computer

Name: Intel N100 Rugged Industrial PC 6 USB 6 COM Wall Mounted Computer
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: IEXP-322
Availability: InStock

Product Details:

Place of Origin:	China
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	IEXP-322
Document:	IEXP-322 Ver 1.0.pdf

Detail Information

Place of Origin:

China

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

IEXP-322

Document:

IEXP-322 Ver 1.0.pdf

Type:

Rugged Industrial PC

CPU:

Intel N100

SATA:

1 X 2.5 Inch HDD

USB:

4 X USB 3.0, 2 X USB 2.0

Serial Port:

6 X RS232 COM (standard)

Ram:

DDR 4800

Operating Temperature:

-20℃ To 60℃

Dimensions:

186 X 140 X 66 Mm

Highlight:

High Light

Highlight:

n100 rugged industrial pc

rugged industrial pc 6 usb

6 com wall mounted computer

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-7Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

Rugged Industrial PC Intel N100 6 USB 6 COM Wall-Mounted Computer

Product Description:

This IEXP-322 Rugged Industrial PC is designed with a low TDP of just 6 W, making it a cost-effective require 24/7 operation, With a wide operating temperature range of -20℃ to 60℃,as it can with stand extreme temperatures, vibrations, and shocks.n100 processor it's powered by 6 USB: four USB 3.0, two USB 2.0, and 6 standard RS232 serial port,many installed method such as desktop,wall-mount,VESA and Din Rail installation.

Technical Parameters:

Parameter	IEXP-322	Storage
Processor	Intel N100(quad core quad thread,Max Turbo 3.4 GHz)	M.2	1x M.2 2280 M-key slot(support SATA )
Chipset	Alder Lake-N	SATA	1x 2.5 inch SSD slot
Memory	1x DDR5 4800 slot, Max 16 GB	Expansion slots
Graphics Card		Mini PCIE	1 x Full length Mini PCIe slot(PCIE&USB2.0 ,4G/WIFI/BT optional), Nano-SIM slot
Graphics Card	Intel(R) UHD Graphics	M.2	1x M.2 2230 E-key slot( support WiFi / BT)
Display port	2 x HD-MI , 1x Type-C	Size/weight
		Dimension	7.3x 5.5 x 2.6 inch
Ethernet		weight
Internet port	2 x Intel I226-V 2.5G Ethernet	Installation	VESA , Wall-mounted, Din-rail (optional)
I/O		Environmental
USB	4x USB 3.0, 2x USB 2.0	Operating Temperature	-20℃ to 60℃, Surface air flow
COM	6 x RS232 COM (standard)	Operating Humidity	5% ～ 95% Non-condensing state
Audio	1 x Line-out/Mic-in, two in one audio	Other Function	Power on when there is electricity, network wake up timed startup, PXE startup ,TPM2.0
Power supply		Other Function
Power Input	1 x DC(5.5 x 2.5mm), support 12V input	Application	Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc

Applications:

The IEXP-322 Rugged Industrial PC Ordering is easy, with a minimum order quantity of just one and negotiable pricing. Each PC comes in a neutral box for easy packaging and delivery times of 3-7 days. Payment options include T/T and Paypal, making it simple to get the products you need without any hassle.
