Product Description:

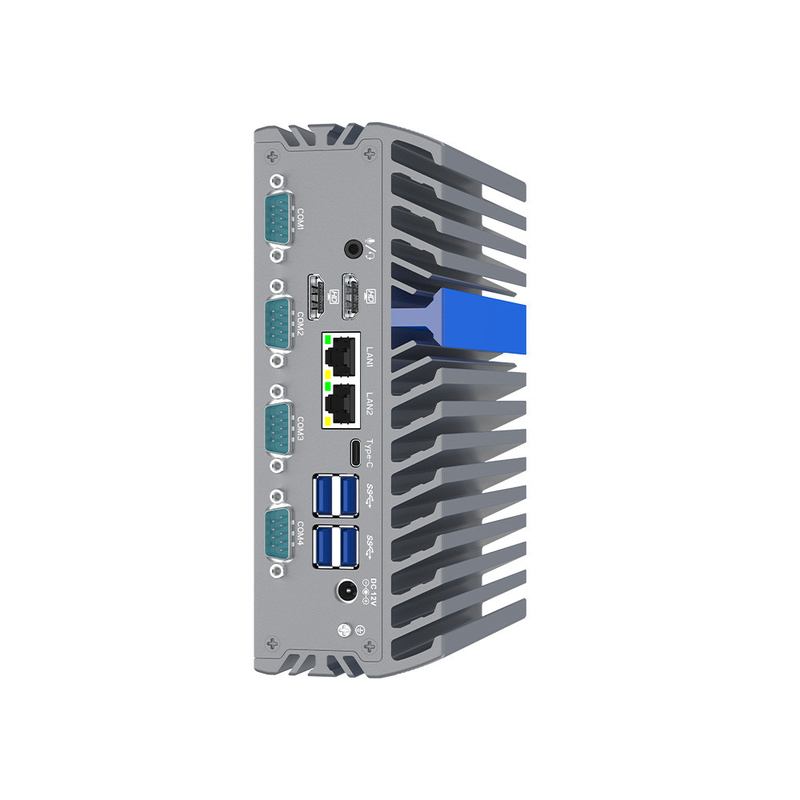

This IEXP-322 Embedded Box Computers is powered by a DC 12V power supply, ensuring reliable and steady power delivery to your system.
12th Gen Intel Alder Lake-N N100 processor
Quad core quad thread,Max Turbo 3.4 GHz
I/O Port: 2 x HDMI, 1 x Type-C, 2 x Intel I226-V 2.5G Ethernet,4 x USB 3.0, 2 x USB 2.0, 6 x RS232 COM
Ethernet: 2 x Intel I226-V 2.5G Ethernet
Expansion Slots: Mini PCIe, M.2
Other Function: Power on , network wake up,Timed startup, PXE startup ,TPM2.0
Technical Parameters:
|
Parameter
|
|
Storage |
|
| Processor |
Intel N100(quad core quad thread,Max Turbo 3.4 GHz) |
M.2 |
1x M.2 2280 M-key slot(support SATA ) |
| Chipset |
Alder Lake-N |
SATA |
1x 2.5 inch SSD slot |
| Memory |
1x DDR5 4800 slot, Max 16 GB |
Expansion slots |
|
| Graphics Card |
|
Mini PCIE |
1 x Full length Mini PCIe slot(PCIE&USB2.0 ,4G/WIFI/BT optional), Nano-SIM slot
|
| Graphics Card |
Intel(R) UHD Graphics |
M.2 |
1x M.2 2230 E-key slot( support WiFi / BT) |
| Display port |
2 x HD-MI , 1x Type-C
|
Size/weight |
|
| |
|
Dimension |
7.3x 5.5 x 2.6 inch |
| Ethernet |
|
weight |
|
| Internet port |
2 x Intel I226-V 2.5G Ethernet |
Installation |
VESA , Wall-mounted, Din-rail (optional) |
| I/O |
|
Environmental |
|
| USB |
4x USB 3.0, 2x USB 2.0 |
Operating Temperature |
-20℃ to 60℃, Surface air flow |
| COM |
6 x RS232 COM (standard) |
Operating Humidity |
5% ～ 95% Non-condensing state |
| Audio |
1 x Line-out/Mic-in, two in one audio |
Other Function |
Power on when there is electricity, network wake up timed startup, PXE startup ,TPM2.0
|
| Power supply |
|
| Power Input |
1 x DC(5.5 x 2.5mm), support 12V input |
Application |
Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc |
Applications:
A Embedded Box Computers like the IEXP-322 is ideal for various industrial applications. the IEXP-322 is a rugged embedded PC that can handle various industrial applications. Its durability, reliability, and flexibility make it a popular choice for factory automation, transportation, surveillance systems, and more.
