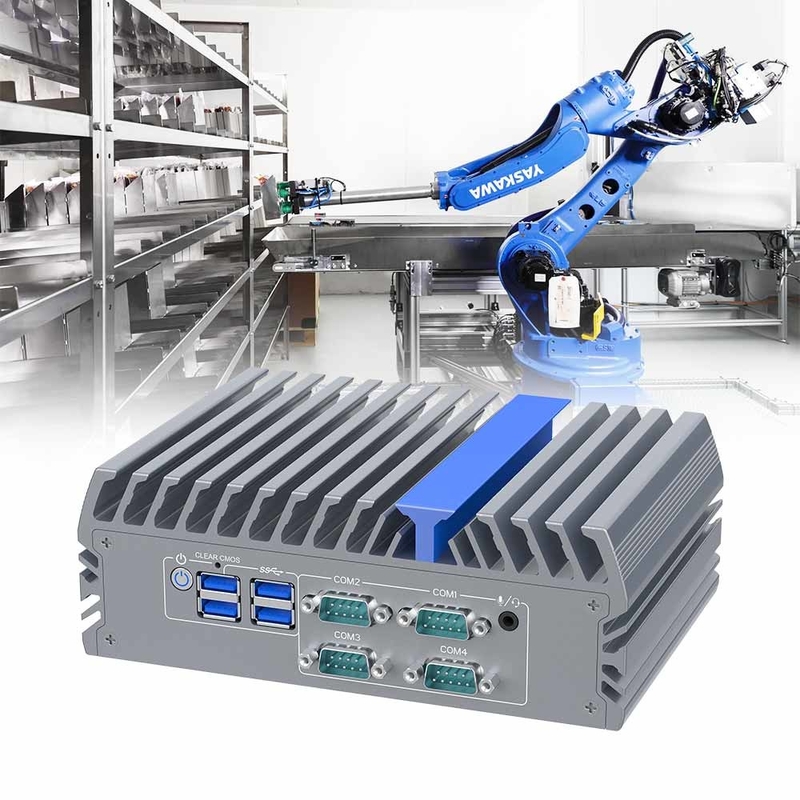

Fanless Industry Mini PC Embedded Computer DC 12V 5A J6412

Name: Fanless Industry Mini PC Embedded Computer DC 12V 5A J6412
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: IEXP-342
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SMATIPC
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	IEXP-342

Detail Information

Place of Origin:

China

Brand Name:

SMATIPC

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

IEXP-342

CPU:

J6412

Ram:

1 X DDR4 3200

M.2:

M.2 2280 M-key Slot

Serial Port:

COM1/2 RS232/485 Optional

Power Supply:

DC 12V

Size:

186 X 127 X 66 Mm

Material:

Alloy Structure

Highlight:

High Light

Highlight:

fanless industry mini pc

embedded computer dc 12v

fanless embedded computer

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-7Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

J6412 Fanless Industry Mini Pc Embedded Computer DC 12V 5A

Product Description:

The IEXP-342 J6412 Mini PC Made with high-quality alloy structure material is easy to power with its DC 12V input. it can power by 12V 5A power adapter,the power cord has CN,US,UK,EU optional, It features Intel(R) UHD Graphics, which delivers stunning visuals and smooth performance .

Technical Parameters:

Parameter	IEXP-342		Storage
Processor	Onboard Intel J6412(quad core quad threads,Max Turbo 2.6 GHz)		M.2	1 x M.2 2280 M-key slot(support SATA & PCIE3.0X1, NVME)
Chipset	Elkhart Lake		SATA	1 x 2.5 inch SSD slot
Memory	1 x DDR4 3200 , max 32 GB		Expansion slots
Graphics Card		Integrated Intel(R) UHD Graphics (support synchronous and asynchronous triple display)	Mini PCIE	1 x full length Mini PCIe slot(PCIE&USB2.0 4G/WIFI/BT optional), Nano-SIM slot
Display port	2 x HD-MI Resolution up to 4096 x 2160 @ 60Hz		Dimension
	1 x VGA Resolution up to 1920 x 1080 @ 60Hz		Size	186 x 127 x 66 mm
Ethernet			weight	1.36 kg
Internet port	2 x Intel RTL8111H Gigabit Ethernet		Installation	VESA , Wall-mounted, Din-rail (optional)
I/O			Environment
USB	4 x USB 3.0, 2 x USB 2.0		Operating Temperature	-20℃ to 60℃, Surface air flow
COM	4 x COM (COM1/2 RS232/485 optional)		Operating Humidity	5% to 95% Non-condensing state
Audio	1 x Line-out/Mic-in, two in one audio		Other Function	Power on, Wake on LAN, PXE ,TPM2.0
Power supply
Power Input	1 x DC 12V		Application	Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc

Applications:

SMATIPC the IEXP-342 J6412 Fanless Industry Mini Pc Embedded Computer DC 12V 5A is suitable for various product application occasions and scenarios. For instance, it can be used for automation and control, digital signage, retail, transportation, and healthcare.
