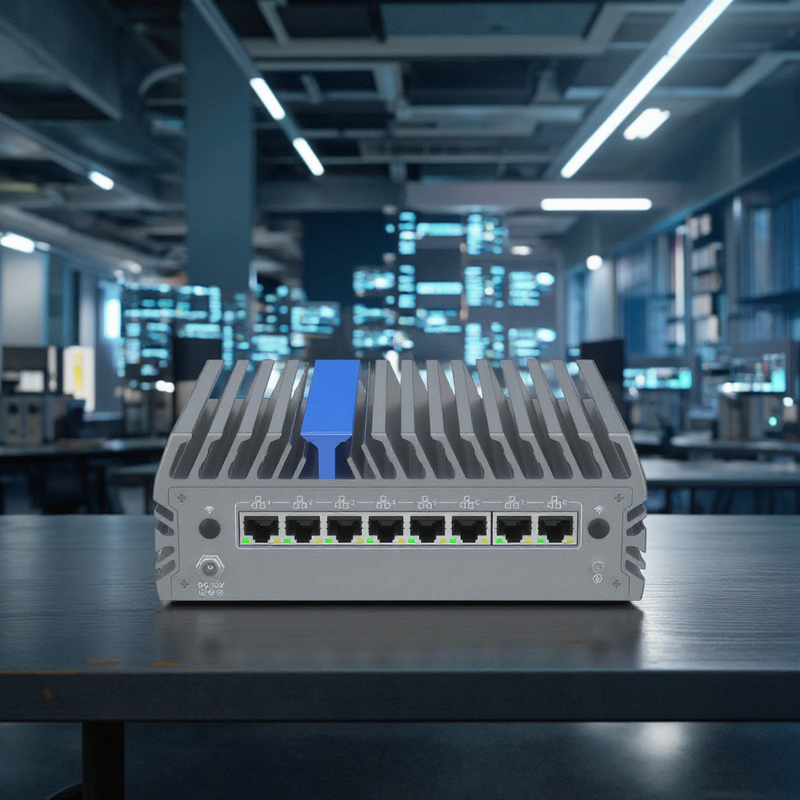

Vpn Firewall Appliance I226 14th Gen Ddr5 Ram 2.5g Ethernet

Name: Vpn Firewall Appliance I226 14th Gen Ddr5 Ram 2.5g Ethernet
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: IEXP-504
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SMATIPC
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	IEXP-504
Document:	IEXP-504 Spec Ver 1.0.pdf

Detail Information

Place of Origin:

China

Brand Name:

SMATIPC

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

IEXP-504

Document:

IEXP-504 Spec Ver 1.0.pdf

CPU:

Intel 14th Gen Core Ultra Processor

Ram:

Max 64GB

Number Of Lan Ports:

Quality Of Service (Qos) Support:

Yes

Virtual Private Network (Vpn) Support:

Yes

COM:

RJ45（support Console）

Highlight:

High Light

Highlight:

Firewall pfsense micro pc

I226 pfsense micro pc

14th Gen pfsense mini computer

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-7Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

Vpn Firewall Appliance I226 14th Gen Ddr5 Ram 2.5g Ethernet

Product Description:

This 2.5g Ethernet firewall comes with six LAN ports that provide high-speed connectivity The six ports are designed to provide maximum throughput and can handle high network traffic without compromising security.

Technical Parameters:

Parameter	IEXP-504	Storage
Processor	Intel Core Ultra 5 125U	M.2	1 x M.2 2280 M-key slot (NVME (PCIE X4)
	Intel Core Ultra 7 155U	SATA	1 x 3.0 inch SSD slot
Chipset	Meteor Lake -U	Expansion Slots
Memory	2 x DDR5 5600MHz slot,Max 64GB	M.2	1 x M.2 2280 M-key slot(NVME)
Graphics Card			1 x M.2 2230 E-key slot(WIFI,BT)
Graphics Card	Intel Graphics		1 x M.2 2242 B-key slot(compatible with 3052B-key)(USB3.0 protocol,support 4G/5G), external SIM slot
Display	1 x HD-MI
	1x DP	Internal port	2 x USB2.0, 4 pin GPIO optional(Standard shipments do not come with theses interfaces)
	1 x Type-C
Ethernet	8 x Intel 2.5Gbe Ethernet	Dimension	180 x 140 x 66 mm
I/O		Weight	1.65 kg
USB	4 x USB3.2	Installation	VESA, Wall-mounted, Din-rail (optional)
COM	1 x RJ45(support Console)	Environmental
Switch buttons	1 x power switch,1 x Reset button	Operating Temperature	-20℃ to +50℃, Surface air flow
Power supply	1 x DC(5.5 x2.5mm), support 12V input	Operating Humidity	5% to 95% Non-condensing state
Other Function	Power On, Wake on LAN	Application	Firewall,Vpn,Network Server
	Timed start up,PXE startup(0～255level),TPM2.0		Network Security,Router., Etc

Applications:

Looking for pfsense appliances or a firewall mini?

Check out our 8 LAN Firewall Appliance with a throughput of up to 2.5 Gbps, VPN support, 4 USB3.2 ports, and a 3 year limited warranty.protecting your network from external threats such as viruses, malware, and other cyber-attacks.
