8 LAN Firewall Computer 14th Gen Ultra 5 125u Intel 2.5gbe

Name: 8 LAN Firewall Computer 14th Gen Ultra 5 125u Intel 2.5gbe
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: IEXP-504
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SMATIPC
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	IEXP-504
Document:	IEXP-504 Spec Ver 1.0.pdf

Detail Information

Place of Origin:

China

Brand Name:

SMATIPC

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

IEXP-504

Document:

IEXP-504 Spec Ver 1.0.pdf

CPU:

Ultra 5 125U

Processor:

Intel 14th Gen Core Ultra Processor

Number Of Lan Ports:

Ram:

DDR5 5600, 64GB

WIFI Support:

YES

Operating:

-20°C To 50°C

Highlight:

High Light

Highlight:

6 lan firewall computer

firewall computer 14th gen

ultra lan firewall

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-7Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

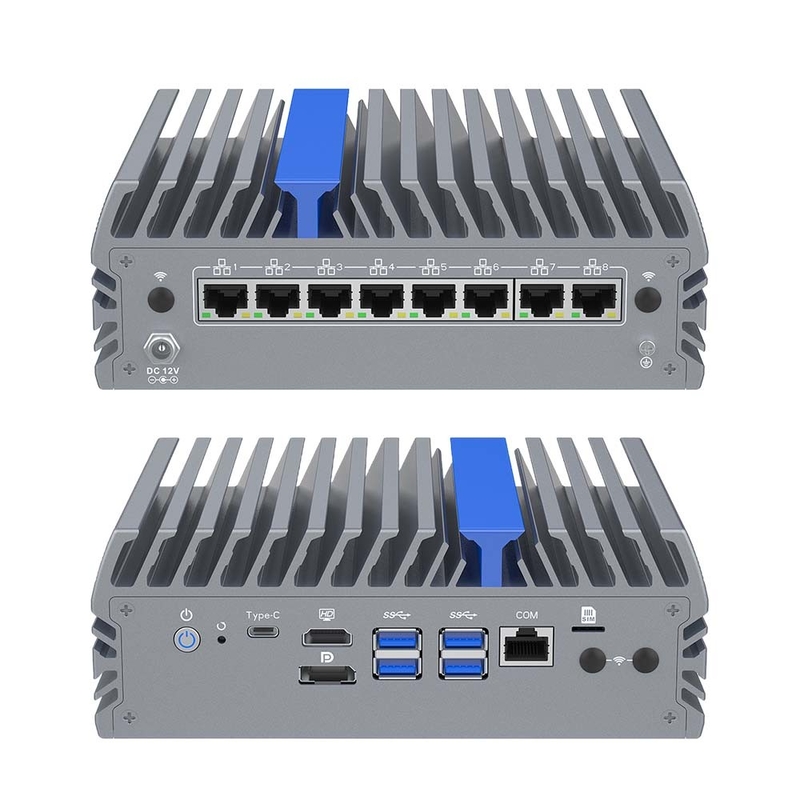

8 LAN Firewall Appliance Computer 14th Gen Ultra 5 125u Intel I226-V 2.5gbe

Product Description:

This Ultra 5 125U firewall appliance is built to deliver outstanding performance, with a powerful CPU and advanced security features that keep your network safe from threats.

Technical Parameters:

Parameter	IEXP-504	Storage
Processor	Intel Core Ultra 5 125U	M.2	1 x M.2 2280 M-key slot (NVME (PCIE X4)
	Intel Core Ultra 7 155U	SATA	1 x 3.0 inch SSD slot
Chipset	Meteor Lake -U	Expansion Slots
Memory	2 x DDR5 5600MHz slot,Max 64GB	M.2	1 x M.2 2280 M-key slot(NVME)
Graphics Card			1 x M.2 2230 E-key slot(WIFI,BT)
Graphics Card	Intel Graphics		1 x M.2 2242 B-key slot(compatible with 3052B-key)(USB3.0 protocol,support 4G/5G), external SIM slot
Display	1 x HD-MI
	1x DP	Internal port	2 x USB2.0, 4 pin GPIO optional(Standard shipments do not come with theses interfaces)
	1 x Type-C
Ethernet	8 x Intel 2.5Gbe Ethernet	Dimension	180 x 140 x 66 mm
I/O		Weight	1.65 kg
USB	4 x USB3.2	Installation	VESA, Wall-mounted, Din-rail (optional)
COM	1 x RJ45(support Console)	Environmental
Switch buttons	1 x power switch,1 x Reset button	Operating Temperature	-20℃ to +50℃, Surface air flow
Power supply	1 x DC(5.5 x2.5mm), support 12V input	Operating Humidity	5% to 95% Non-condensing state
Other Function	Power On, Wake on LAN	Application	Firewall,Vpn,Network Server
	Timed start up,PXE startup(0～255level),TPM2.0		Network Security,Router., Etc

Applications:

The SMATIPC IEXP-504 is suitable for various applications and scenarios that require secure and reliable network connectivity. Some of the occasions that can benefit from this product include:

Security storage
network security
Industrial control systems
Research institutions
Hospitality and retail industries
