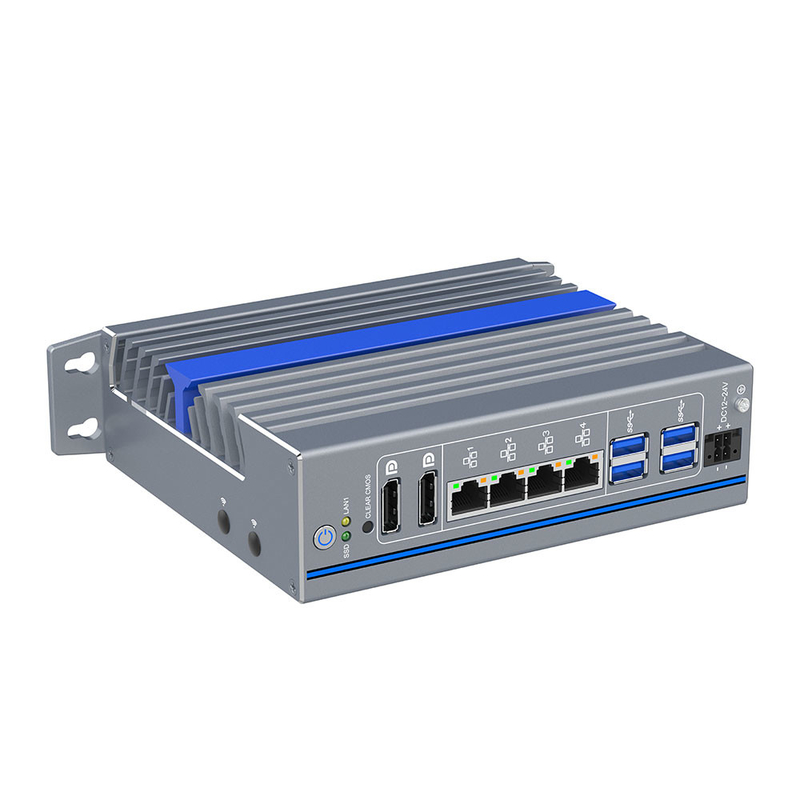

Product Description:
One of the standout features of this PC is its Intel I7-1255U processor, feature of this PC is its DDR5 memory, which ensures that all your operations are fast and seamless. DDR5 is the latest and most advanced memory technology available, providing high-speed data transfer and increased bandwidth, making it ideal for industrial applications.
Technical Parameters:
| Parameter |
|
|
Storage |
| Processor |
Intel i5-1235U (10 core 12 threads, Turbo. 4.4 GHz)
Intel i7-1255U (10 core 12 threads,Turbo. 4.7 GHz)
|
|
M.2 |
1x M.2 2280 M-key slot (support SATA SSD & NVME SSD PCEIE 1X ) |
| Chipset |
Alder Lake-U |
|
MSATA |
1xMSATA |
| Memory |
2xDDR5 4800MHz SODIMM, Max 64 GB |
|
Expansion |
| Graphics Card |
|
Mini PCIE |
1xfull-length Mini PCIe slot (support PCIE & USB2.0 signal, 4G/WIFI/Bluetooth optional), internal Nano-SIM card slot |
| Graphics |
Intel(R) Iris(R) Xe Graphics |
|
|
|
| Display |
2xDP(Resolution 7680 x 4320 @60Hz) |
|
Dimension |
| |
|
|
Size |
205 * 146 * 50 mm |
| Network |
|
Weight |
1.54 kg |
| Lan Port |
3xIntel i210-AT, 1xIntel i219-LM 1000M Ethernet |
|
Installation |
Wall-mounted (standard included), Din rail (optional), Desktop (default support) |
| I/O |
|
Environment |
| USB |
4xUSB 3.0 |
|
Temperature |
-20℃~+60℃, Surface air flow |
| COM |
Standard None, Optional 2xCOM (COM1/2 RS232/485) |
|
Humidity |
5%~95% Non-condensing state |
| Audio |
/ |
|
Other Function |
Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption |
| Power Supply |
|
|
|
| Power Supply |
1x4Pin Phoenix terminal power supply,
DC 12V~24V wide voltage input
|
|
Application |
Industrial Automation, Medical, Logistics &Transportation, Warehousing, e-education and other fields. |
Support and Services:
The Core Industrial PC product technical support team is dedicated to providing assistance and solutions to any technical issues that may arise with the product. Our services include:
1. Technical troubleshooting and problem resolution
2. Software and firmware updates
3. Hardware repair and replacement
4. Installation and setup guidance
5. User training and support
We strive to provide timely and effective support to ensure that our customers' Core Industrial PC products operate at their best performance. Our team is available to assist via phone, email, or online chat during regular business hours.
