Product Description:

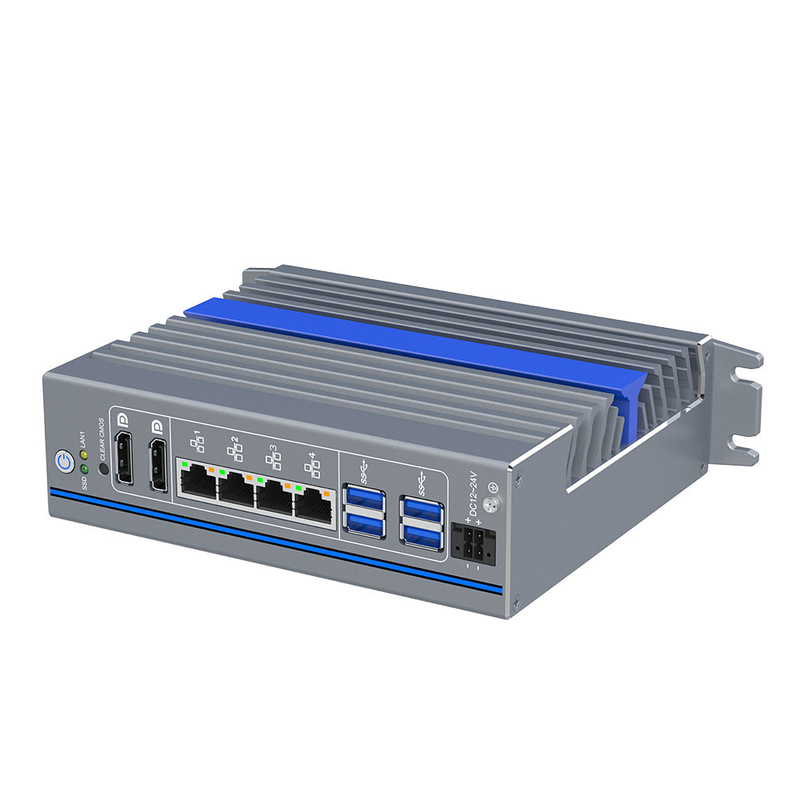

The Core Industrial PC features the powerful Intel I7-1255U processor, which can deliver clock speeds of up to 4.7 GHz. This processor is a top-of-the-line model that is ideal for demanding applications that require fast and efficient processing. Additionally, it also has an Intel I5-1235U processor option for those who want a more cost-effective solution without sacrificing performance.
The Core Industrial PC is also equipped with DDR5 4800 RAM, which provides lightning-fast data transfer speeds. This ensures that the PC can handle multiple tasks and applications simultaneously without any lag or slowdowns. This feature is especially important for industrial applications that require real-time data processing and analysis.
One of the standout features of this PC is its dual display capability. It can easily connect to two separate displays, making it ideal for applications that require multiple screens. This feature is particularly useful for industrial automation and control applications where operators need to monitor multiple processes and systems simultaneously.
Technical Parameters:
| Parameter |
|
|
Storage |
| Processor |
Intel i5-1235U (10 core 12 threads, Turbo. 4.4 GHz)
Intel i7-1255U (10 core 12 threads,Turbo. 4.7 GHz)
|
|
M.2 |
1x M.2 2280 M-key slot (support SATA SSD & NVME SSD PCEIE 1X ) |
| Chipset |
Alder Lake-U |
|
MSATA |
1xMSATA |
| Memory |
2xDDR5 4800MHz SODIMM, Max 64 GB |
|
Expansion |
| Graphics Card |
|
Mini PCIE |
1xfull-length Mini PCIe slot (support PCIE & USB2.0 signal, 4G/WIFI/Bluetooth optional), internal Nano-SIM card slot |
| Graphics |
Intel(R) Iris(R) Xe Graphics |
|
|
|
| Display |
2xDP(Resolution 7680 x 4320 @60Hz) |
|
Dimension |
| |
|
|
Size |
205 * 146 * 50 mm |
| Network |
|
Weight |
1.54 kg |
| Lan Port |
3xIntel i210-AT, 1xIntel i219-LM 1000M Ethernet |
|
Installation |
Wall-mounted (standard included), Din rail (optional), Desktop (default support) |
| I/O |
|
Environment |
| USB |
4xUSB 3.0 |
|
Temperature |
-20℃~+60℃, Surface air flow |
| COM |
Standard None, Optional 2xCOM (COM1/2 RS232/485) |
|
Humidity |
5%~95% Non-condensing state |
| Audio |
/ |
|
Other Function |
Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption |
| Power Supply |
|
|
|
| Power Supply |
1x4Pin Phoenix terminal power supply,
DC 12V~24V wide voltage input
|
|
Application |
Industrial Automation, Medical, Logistics &Transportation, Warehousing, e-education and other fields. |
Applications:
The SMATIPC IEXP-512 is equipped with an i5-1235U processor, capable of reaching speeds of up to 4.7 GHz, ensuring top-notch performance for any task. Its compact size of 205 x 146 x 50 mm, with a depth of 146mm, makes it suitable for use in small spaces without sacrificing power.
The connectivity options of this product are Ethernet, Wi-Fi, and Bluetooth, allowing for easy integration into any existing network. With 4 network interfaces, this product can support multiple connections and devices at once.
