Home > products >

2u Rack Mounted Network Security With Redundant Power Supply

Name: 2u Rack Mounted Network Security With Redundant Power Supply
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: 2U6L-ADL
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SMATIPC
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	2U6L-ADL
Document:	2U6L-ADL Specs Ver 1.0.pdf

Detail Information

Place of Origin:

China

Brand Name:

SMATIPC

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

2U6L-ADL

Document:

2U6L-ADL Specs Ver 1.0.pdf

Processor:

Intel Core I3-12100

Cores:

Threads:

Base Frequency:

3.3 Ghz

Turbo Frequency:

4.3 Ghz

Cache:

5MB

Dimension:

482 X 471 X 88.8mm

Weight:

7.19 Kg ( Barebone )

Highlight:

High Light

Highlight:

2u rack mounted network

2u rack mounted firewall

i3 rack mounted network

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-7Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

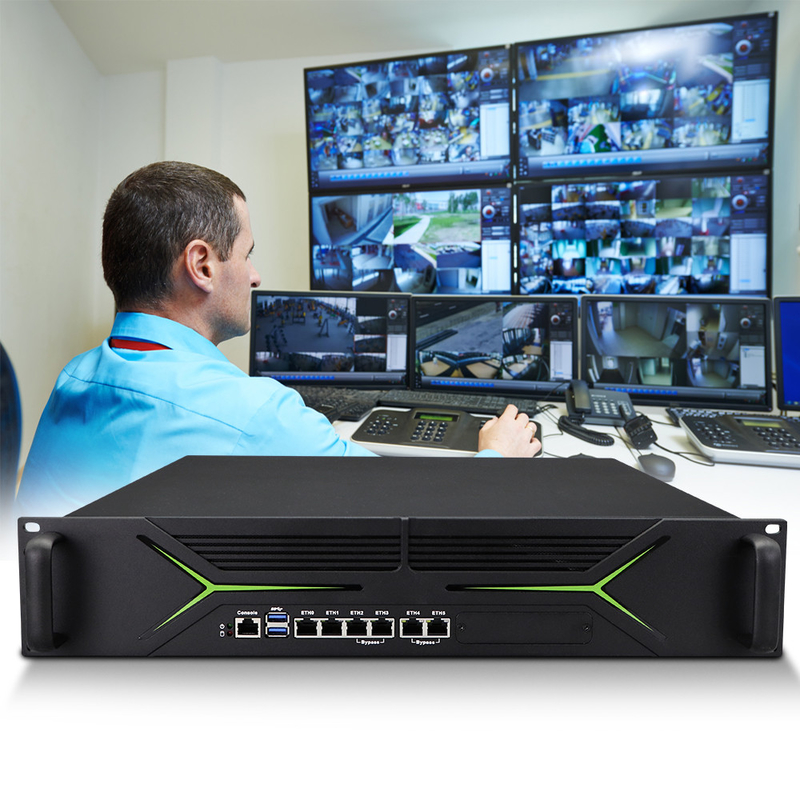

2u Rack-Mounted Network Security With Redundant Power Supply

Product Description:

2U6L-ADL Network Security Server roughly 3.5 inches in heightWith1 PCIE X8 optional 4 Optical Ports or 4 Network Ports, ensuring that your network remains secure and running smoothly. Its input power of 90~265V (47Hz-63Hz) AC input (optional redundant power supply, making it a versatile solution for businesses of all types.

Technical Parameters:

Parameter	2U6L ADL	Storage
Processor	Intel Core I3-12100	M.2	1 M.2 (M-Key 2280 supports SATA)
Chipset	Intel H610	MSATA	1 x 3.5” HDD or 2 x 2.5” HDD
Memory	2 DDR4 3200 U-DIMM Memory Slots, Max. 64GB	Expansion
Graphics Card		Mini PCIE	1 PCIE X8 (optional 4 Optical Ports or 4 Network Ports) 1 M.2 (B-Key 3042, supports 4G)
Graphics	Intel UHD Graphics 730/770		1 M.2 (M-Key 2280, supports SATA SSD) 1 M.2 (E-Key 2230, supports WiFi/BT)
Display	1 x HD-MI	Dimension
		Size	482 x 471 x 88.8 mm
Network		Weight	7.19 kg (barebone)
Lan Port	6 Intel i210-AT Gigabit Ethernet ports ( 2 sets of Bypass)
I/O		Environment
USB	2 x USB 3.0	Temperature	0℃ ~ 50℃, Surface air flow
COM	1 x COM	Humidity	5%~95% Non-condensing state
Audio	/	Other Function	Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption
Power Supply
Power Supply	90~265V (47Hz-63Hz) AC input (optional redundant power supply)	Application	Firewall, VPN, network server, network security, router and other fields.

Applications:

The chassis material is made of aluminum alloy front panel and SGCC cabinet, ensuring durability and longevity. SMATIPC's 2U6L-ADL Rackmount Firewall Appliance for the ultimate in network security
