Lga1700 2u Dual Socket Intel H610 Chipset Rackmount Server

Name: Lga1700 2u Dual Socket Intel H610 Chipset Rackmount Server
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: 2U6L-ADL
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SMATIPC
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	2U6L-ADL
Document:	2U6L-ADL Specs Ver 1.0.pdf

Detail Information

Place of Origin:

China

Brand Name:

SMATIPC

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

2U6L-ADL

Document:

2U6L-ADL Specs Ver 1.0.pdf

CPU:

Intel Core I3 I5 I7 Of LGA1700

Dispaly Chipset:

H610

Serial:

1 COM (support Console),

Display:

1 HD-MI

Lan:

Intel I210-AT Gigabit Ethernet Ports

Number Of Lan Ports:

Quality Of Service (Qos) Support:

YES

Operating Humidity:

5% - 95%

Highlight:

High Light

Highlight:

lga1700 rackmount server

lga1700 rackmount networks

2u rackmount server

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-7Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

2u Dual Socket Intel H610 Chipset Rackmount Server Of Lga1700

Product Description:

The 2U6L ADL Rackmount Server features Intel Core I3-12100, I5-12400and I7-12700,they are cpu specification as follow:

i3: 4 Core 8 Threads, 3.3 Ghz, Turbo Frequency 4.3 Ghz, 5MB

i5: 6 Core 12 Threads, 2.5 Ghz, Turbo Frequency 4.4 Ghz, 7.5MB

i7: 12 Core 20 Threads, 2.10 Ghz, Turbo Frequency 4.9 Ghz, 12MB

Technical Parameters:

Parameter	2U6L-ADL	Storage
Processor	Intel Core I3-12100 Intel Core I5-12400 Intel Core I7-12700	M.2	1 M.2 (M-Key 2280 supports SATA)
Chipset	Alder Lake-N	SATA	optional 1 X 3.5 inch HDD or 2 x 2.5 inch HDD
Memory	2 DDR4 3200 U-DIMM Memory , Max. 64GB	Expansion slots
Graphics Card		Mini PCIE	1 PCIE X8 (optional 4 Optical Ports or 4 Network Ports)
Graphics Card	Intel UHD Graphics 730/770	M.2	1 M.2 (M-Key 2280, supports SATA SSD)
Display port	1 x HD-MI	Size/weight

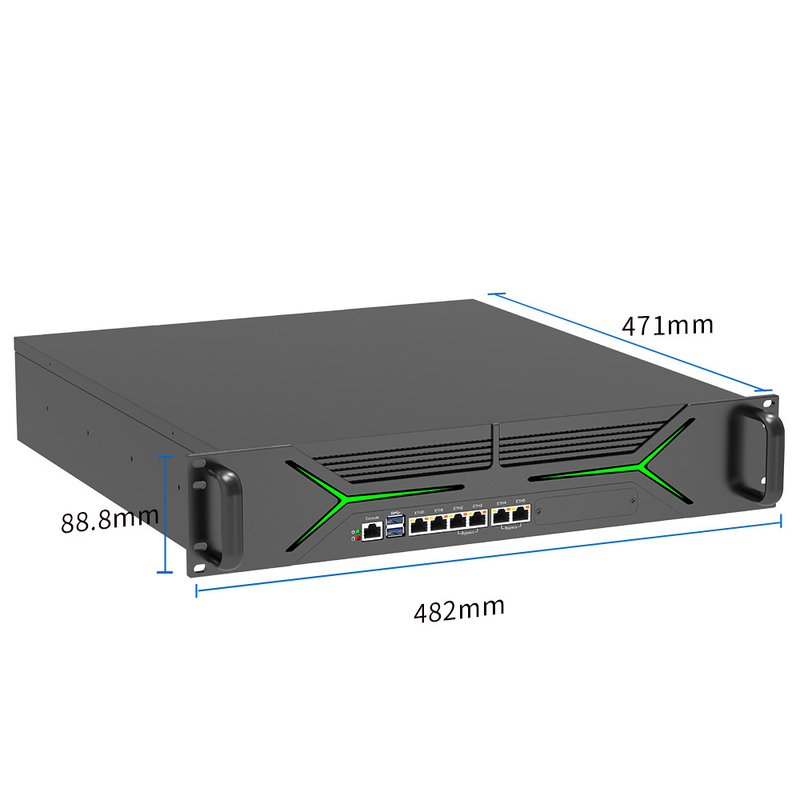

		Dimension	482 x 471 x 88.8mm
Ethernet		weight	7.19 kg (barebone)
Internet port	6 Intel i210-AT Gigabit Ethernet ports ( 2 sets of Bypass)	Installation	/
I/O		Environmental
USB	2 x USB 3.0	Operating Temperature	0℃ to 50℃, Surface air flow
COM	1x RS232/485 COM	Operating Humidity	5% ～ 95% Non-condensing state
Audio	/	Other Function	Watchdog (level 0-255) Diskless boot, Wake on LAN, Auto power on, Timing boot
Power supply		Other Function
Power Input	90 to 265V (47Hz-63Hz) AC input (optional redundant power supply)	Application	Firewall, VPN, network server, network security, router .,etc

Applications:

The 2U6L-ADL Rackmount Server is designed for for Car Body Construction
