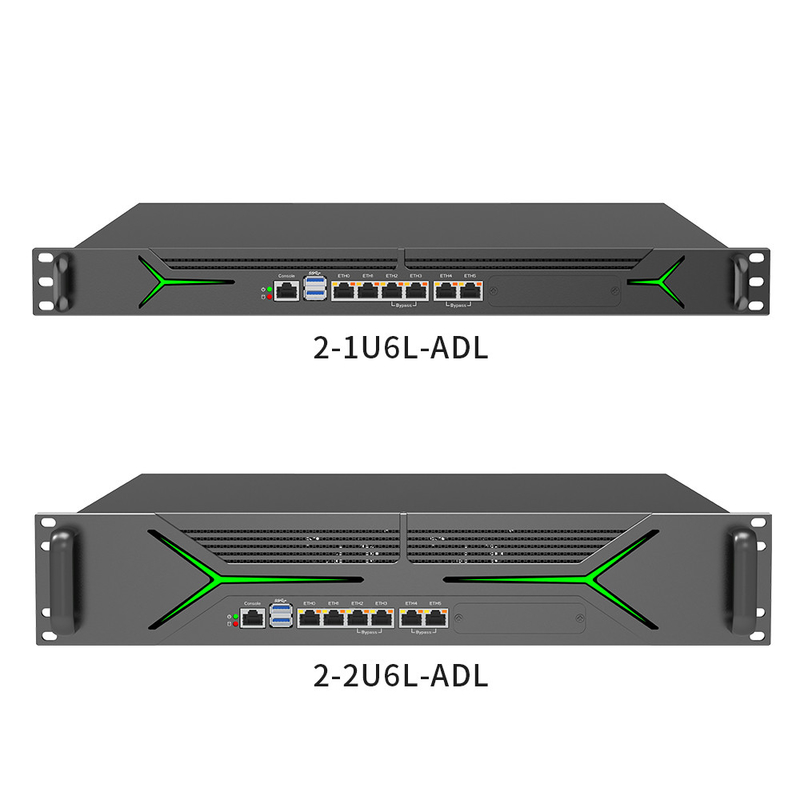

Aluminum Alloy 2u Network Cabinet Vertical Wall Mount Use In Virtualization

Name: Aluminum Alloy 2u Network Cabinet Vertical Wall Mount Use In Virtualization
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: 2U6L-ADL
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SMATIPC
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	2U6L-ADL
Document:	2U6L-ADL Specs Ver 1.0.pdf

Detail Information

Place of Origin:

China

Brand Name:

SMATIPC

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

2U6L-ADL

Document:

2U6L-ADL Specs Ver 1.0.pdf

Processor:

12th Gen Core I3 I5 I7

SATA:

1X 3.5” HDD

Memory:

Dual DDR4 RAM Slots

M.2:

1 M.2 (M-Key 2280 Supports SATA)

Gigabit Ethernet:

Intel I210-AT Gigabit Ethernet Ports

USB:

2 USB3.0

Quality Of Service (Qos) Support:

YES

Aluminum Alloy 2u Network Cabinet Vertical Wall Mount Use In Virtualization:

Aluminum Alloy Front Panel, SGCC Cabinet

Highlight:

High Light

Highlight:

2u network cabinet vertical

aluminum alloy 2u network cabinet

vertical 2u server rack cabinet

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-7Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

Aluminum Alloy 2u Network Cabinet Vertical Wall Mount Use In Virtualization

Product Description:

The 2U6L ADL 2u Network Cabinet Vertical Wall MountServer features Input Power 90~265V (47Hz-63Hz) AC input (optional redundant power supply),support Watchdog (level 0-255)Diskless boot, Wake on LAN, Auto power on, Timing boot,Operating Temperature 0℃～+50℃, surface air flow,Working Humidity 5% ~ 95% non-condensing state

Technical Parameters:

Parameter	2U6L-ADL	Storage
Processor	Intel Core I5-12400 6 Core 12 Threads, 2.5 Ghz, Turbo Frequency 4.4 Ghz, 7.5MB	M.2	1 M.2 (M-Key 2280 supports SATA)
Chipset	Alder Lake-N	SATA	optional 1 X 3.5 inch HDD or 2 x 2.5 inch HDD
Memory	2 DDR4 3200 U-DIMM Memory , Max. 64GB	Expansion slots
Graphics Card		Mini PCIE	1 PCIE X8 (optional 4 Optical Ports or 4 Network Ports)
Graphics Card	Intel UHD Graphics 730/770	M.2	1 M.2 (M-Key 2280, supports SATA SSD)
Display port	1 x HD-MI	Size/weight
		Dimension	482 x 471 x 88.8mm
Ethernet		weight	7.19 kg (barebone)
Internet port	6 Intel i210-AT Gigabit Ethernet ports ( 2 sets of Bypass)	Installation	/
I/O		Environmental
USB	2 x USB 3.0	Operating Temperature	0℃ to 50℃, Surface air flow
COM	1x RS232/485 COM	Operating Humidity	5% ～ 95% Non-condensing state
Audio	/	Other Function	Watchdog (level 0-255) Diskless boot, Wake on LAN, Auto power on, Timing boot
Power supply		Other Function
Power Input	90 to 265V (47Hz-63Hz) AC input (optional redundant power supply)	Application	Firewall, VPN, network server, network security, router .,etc

Applications:

The 2U6L-ADL 2u Network Cabinet Vertical Wall Mount Server is designed for

Edge Intelligence & Al
Embedded Boards & Services
Embedded Kiosks
Environmental & Facility
