Product Description:

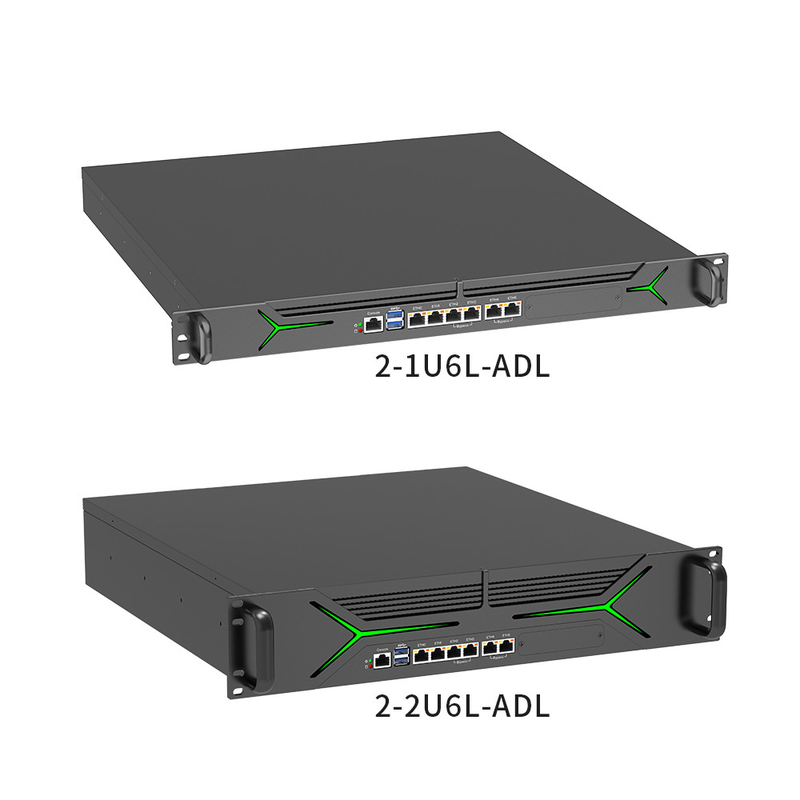

The 2U6L ADL is a high performance, and extremely reliable 2U Rack Mount Computer which is equipped with 1 x 3.5 inch HDD or 2 x 2.5 inch HDD. dual DDR4 memory slot is max supported to 64GB,and 6 lan port,offer Wired or Wired & Wireless or Wireless connect to other device.
Technical Parameters:
| Parameter |
2U6L ADL |
|
Storage |
| Processor |
Intel Core I3-12100
|
|
M.2 |
1 M.2 (M-Key 2280 supports SATA)
|
| Chipset |
Intel H610
|
|
MSATA |
1 x 3.5” HDD or 2 x 2.5” HDD
|
| Memory |
2 DDR4 3200 U-DIMM Memory Slots, Max. 64GB
|
|
Expansion |
| Graphics Card |
|
Mini PCIE |
1 PCIE X8 (optional 4 Optical Ports or 4 Network Ports)
1 M.2 (B-Key 3042, supports 4G)
|
| Graphics |
Intel UHD Graphics 730/770
|
|
|
1 M.2 (M-Key 2280, supports SATA SSD)
1 M.2 (E-Key 2230, supports WiFi/BT)
|
| Display |
1 x HD-MI
|
|
Dimension |
| |
|
|
Size |
482 x 471 x 88.8 mm
|
| Network |
|
Weight |
7.19 kg (barebone) |
| Lan Port |
6 Intel i210-AT Gigabit Ethernet ports ( 2 sets of Bypass)
|
|
|
|
| I/O |
|
Environment |
| USB |
2 x USB 3.0 |
|
Temperature |
0℃ ~ 50℃, Surface air flow |
| COM |
1 x COM |
|
Humidity |
5%~95% Non-condensing state |
| Audio |
/ |
|
Other Function |
Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption |
| Power Supply |
|
|
|
| Power Supply |
90~265V (47Hz-63Hz) AC input
(optional redundant power supply)
|
|
Application |
Firewall, VPN, network server, network security, router
and other fields. |
Applications:
Data Center: 2U server is suitable for large data centers and can be used to host various tasks and services, such as virtualization, cloud computing, database management, etc. Its high performance and reliability make it a core component of the data center.
Network Application: 2U server can be used to host various network applications and services, such as website hosting, e-commerce, mail services, etc. It can handle high concurrent requests while providing stable network connections.
Storage Solution: 2U server is suitable for large-capacity storage solutions, such as network storage, backup and recovery, data archiving, etc. It can provide high-speed data transmission and reliable data protection functions.
