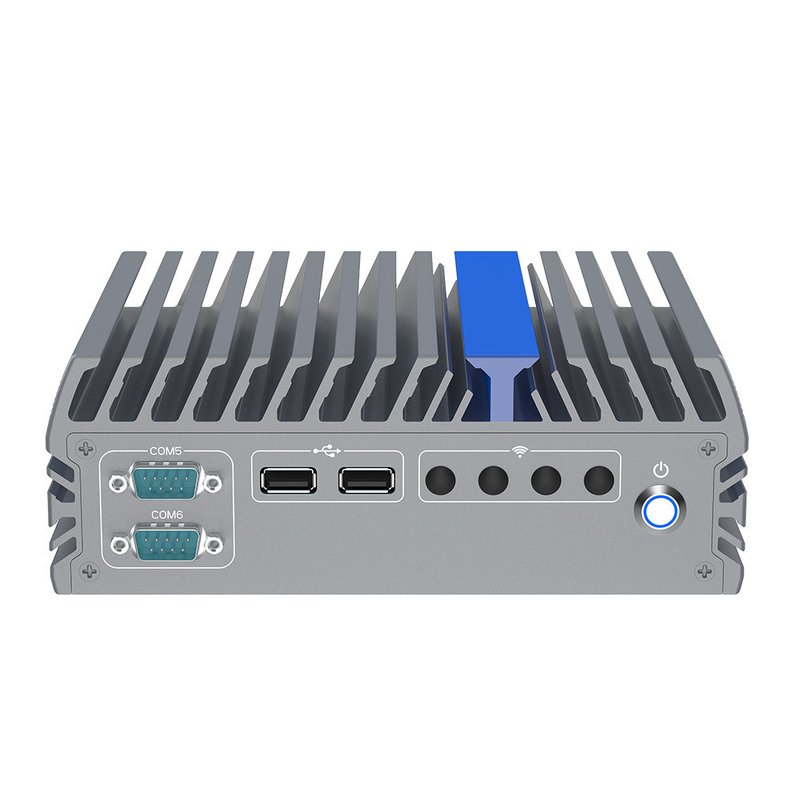

IPC Industrial Computers Dual Ethernet With Intel Core I7-1255U

Name: IPC Industrial Computers Dual Ethernet With Intel Core I7-1255U
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: IEXP-522
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SMATIPC
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	IEXP-522
Document:	IEXP-522 Specs Ver 1.0.pdf

Detail Information

Place of Origin:

China

Brand Name:

SMATIPC

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

IEXP-522

Document:

IEXP-522 Specs Ver 1.0.pdf

Chipset:

Alder Lake-N

Graphics:

Intel(R) UHD Graphics

Audio:

Realtek ALC887

Network Interfaces:

2 Intel I226-V Ethernet

Power Adapter:

12V 7.5A

Dimensions:

186 X 140 X 66 Mm

Din-rail Installation:

Support

I7 CPU:

Intel Core I7-1255U

Highlight:

High Light

Highlight:

intel core industrial pc

intel industrial embedded pc

i7 core industrial pc

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-7Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

IPC Industrial Computers Dual Ethernet With Intel Core I7-1255U

Product Description:

One of the key features of the Core Industrial PC is its expansion slots. With PCIE and USB2.0 protocols, this embedded PC is capable of connecting to a wide range of peripherals, including cameras, sensors, and other devices. This makes it an ideal solution for data acquisition and control applications.

The Core Industrial PC also comes equipped with 2 x Intel Gigabit LAN ports, providing high-speed connectivity for network applications. This ensures that data can be transmitted quickly and efficiently between devices, improving overall system performance.

Technical Parameters:

Parameter			Storage
Processor	Onboard Intel i5-1235U(ten core twelve thread,4.4 GHz) Onboard Intel i7-1255U(ten core twelve thread,4.7 GHz)		M.2	1*M.2 2280 M-key slot(support NVME SSD, PCIE X4 protocol)
Chipset	Alder Lake-N		SATA	1*2.5 inch SSD slot
Memory	1*DDR5 4800MHz SODIMM slot, max 32 GB		Expansion slots
Graphics Card			Mini PCIE	1* full length Mini PCIe slot(PCIE&USB2.0 protocol, 4G/WIFI/BT optional), inside Nano-SIM slot
Graphics Card		Integrated Intel(R) UHD Graphics (Support synchronous and asynchronous triple display)	M.2	1*M.2 2230 E-key slot( support WiFi / BT)
Display port	2HDMI(Resolution up to 3840 x 2160 @60Hz) 1Type-C(Resolution up to 3840 x 2160 @60Hz)		Size/weight
Ethernet			Dimension	186 * 140 * 66 mm
			weight	X kg
Internet port	2*Intel I226-V 2.5G Ethernet		Installation	VESA , Wall-mounted, Din-rail (optional)
I/O			Environmental
USB	4USB 3.0, 2USB 2.0		Operating Temperature	-20℃ ～ +60℃, Surface air flow
COM	6*RS232 COM (standard)		Operating Humidity	5% ～ 95% Non-condensing state
Audio	1* Line-out/Mic-in, two in one audio		Other Function	Power on when there is electricity, network wake up timed startup, PXE startup(0～255level),TPM2.0
Power supply			Application	Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc

Applications:

This industrial PC is equipped with an Intel Core i7 12th gen processor, which provides exceptional processing power and ensures that the system can handle even the most demanding applications. The system also supports dual display, which makes it an ideal choice for applications that require multiple monitors.

24/7 technical assistance
Online documentation and user manuals
Product training and workshops
Warranty and repair services
Customization and integration services
