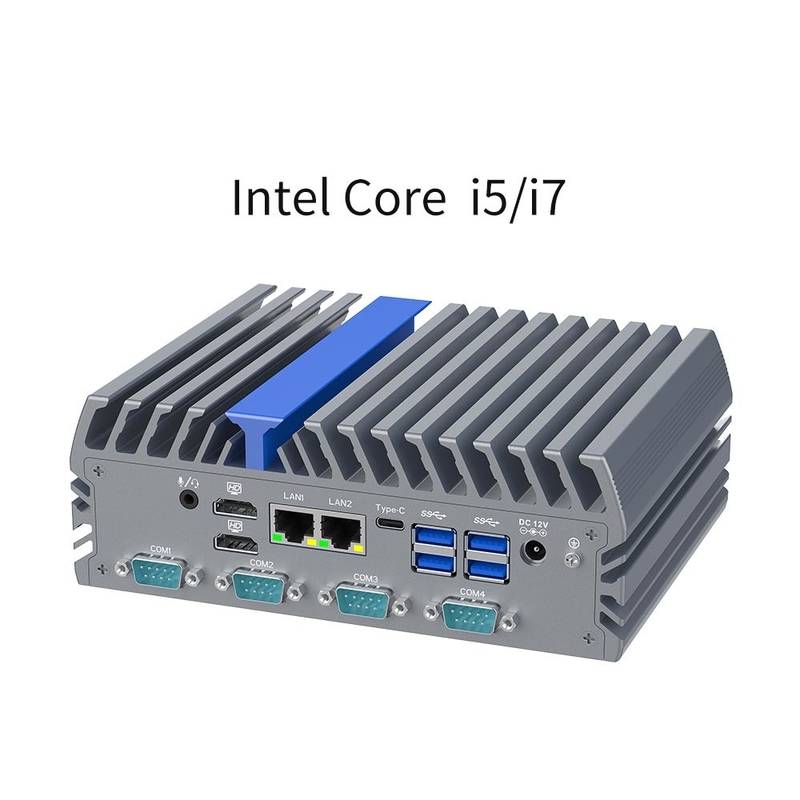

Industrial Mini Box Ipc Embedded Computer 12v For Machine Vision Systems

Name: Industrial Mini Box Ipc Embedded Computer 12v For Machine Vision Systems
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: IEXP-522
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SMATIPC
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	IEXP-522
Document:	IEXP-522 Specs Ver 1.0.pdf

Detail Information

Place of Origin:

China

Brand Name:

SMATIPC

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

IEXP-522

Document:

IEXP-522 Specs Ver 1.0.pdf

Dimensions:

186 X 140 X 66 Mm

Mini PCIE:

PCIE USB2.0 Protocol， 4G/WIFI/BT

I/O Port:

LAN, COM, USB

Graphics:

Intel(R) UHD Graphics

Highlight:

High Light

Highlight:

embedded computer 12v

industrial embedded pc

industrial embedded computer

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-7Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

Industrial Mini Box Ipc Embedded Computer 12v For Machine Vision Systems

Product Description:

The Core Industrial PC is equipped with two Intel I226-V Ethernet network interfaces, which provide fast and reliable connectivity to your network. This makes it an ideal choice for businesses that require high-speed data transfer and communication capabilities.

Technical Parameters:

Parameter			Storage
Processor	Onboard Intel i5-1235U(ten core twelve thread,4.4 GHz) Onboard Intel i7-1255U(ten core twelve thread,4.7 GHz)		M.2	1*M.2 2280 M-key slot(support NVME SSD, PCIE X4 protocol)
Chipset	Alder Lake-N		SATA	1*2.5 inch SSD slot
Memory	1*DDR5 4800MHz SODIMM slot, max 32 GB		Expansion slots
Graphics Card			Mini PCIE	1* full length Mini PCIe slot(PCIE&USB2.0 protocol, 4G/WIFI/BT optional), inside Nano-SIM slot
Graphics Card		Integrated Intel(R) UHD Graphics (Support synchronous and asynchronous triple display)	M.2	1*M.2 2230 E-key slot( support WiFi / BT)
Display port	2HDMI(Resolution up to 3840 x 2160 @60Hz) 1Type-C(Resolution up to 3840 x 2160 @60Hz)		Size/weight
Ethernet			Dimension	186 * 140 * 66 mm
			weight	X kg
Internet port	2*Intel I226-V 2.5G Ethernet		Installation	VESA , Wall-mounted, Din-rail (optional)
I/O			Environmental
USB	4USB 3.0, 2USB 2.0		Operating Temperature	-20℃ ～ +60℃, Surface air flow
COM	6*RS232 COM (standard)		Operating Humidity	5% ～ 95% Non-condensing state
Audio	1* Line-out/Mic-in, two in one audio		Other Function	Power on when there is electricity, network wake up timed startup, PXE startup(0～255level),TPM2.0
Power supply			Application	Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc

Applications:

The SMATIPC IEXP-522 is an ideal choice for embedded systems and various industrial applications such as factory automation, machine vision, and industrial control. Its robust design and high-performance capabilities make it an excellent choice for demanding work environments.
