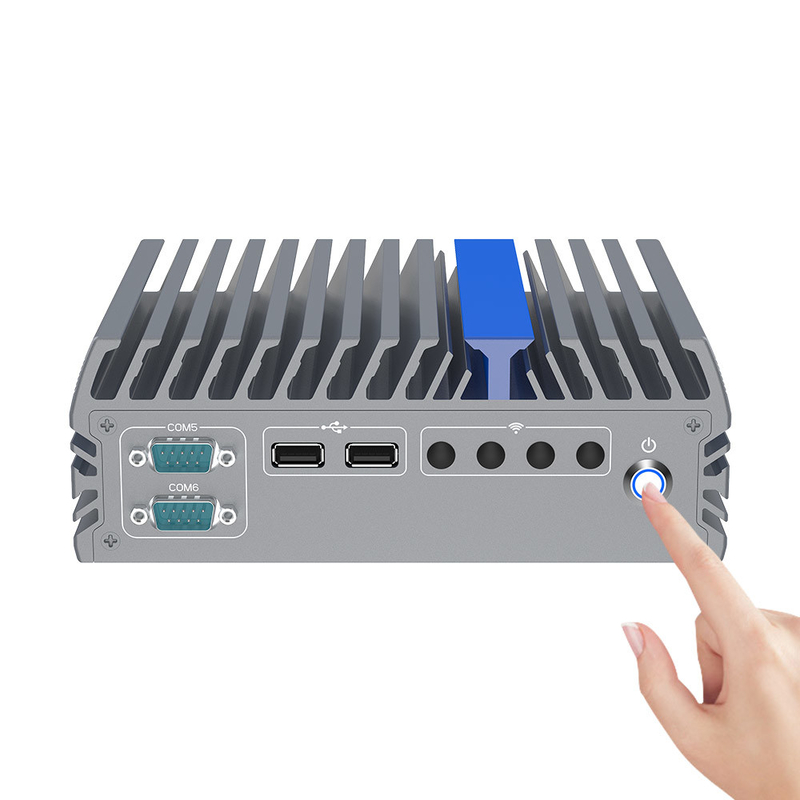

Product Description:
the Core Industrial PC is the best industrial PC in the market today, thanks to its powerful Intel Core i7 12th Gen processor, up to 32 GB DDR5 memory, up to 2TB SSD storage, M.2 slot for WiFi and Bluetooth connectivity, and Intel(R) UHD Graphics. With these features, the Core Industrial PC is perfect for use in demanding industrial environments that require quick and efficient performance, ample storage space, and high-quality graphics.
Technical Parameters:
| Parameter |
|
|
Storage |
|
| Processor |
Onboard Intel i5-1235U(ten core twelve thread,4.4 GHz)
Onboard Intel i7-1255U(ten core twelve thread,4.7 GHz)
|
|
M.2 |
1*M.2 2280 M-key slot(support NVME SSD, PCIE X4 protocol) |
| Chipset |
Alder Lake-N |
|
SATA |
1*2.5 inch SSD slot |
| Memory |
1*DDR5 4800MHz SODIMM slot, max 32 GB |
|
Expansion slots |
|
| Graphics Card |
|
|
Mini PCIE |
1* full length Mini PCIe slot(PCIE&USB2.0 protocol,
4G/WIFI/BT optional), inside Nano-SIM slot
|
| Graphics Card |
Integrated Intel(R) UHD Graphics (Support synchronous and asynchronous triple display) |
|
M.2 |
1*M.2 2230 E-key slot( support WiFi / BT) |
| Display port |
2*HD-MI(Resolution up to 3840 x 2160 @60Hz)
1*Type-C(Resolution up to 3840 x 2160 @60Hz)
|
|
Size/weight |
|
| Ethernet |
|
Dimension |
186 * 140 * 66 mm |
| |
|
weight |
X kg |
| Internet port |
2*Intel I226-V 2.5G Ethernet |
|
Installation |
VESA , Wall-mounted, Din-rail (optional) |
| I/O |
|
|
Environmental |
|
| USB |
4*USB 3.0, 2*USB 2.0 |
|
Operating Temperature |
-20℃ ～ +60℃, Surface air flow |
| COM |
6*RS232 COM (standard) |
|
Operating Humidity |
5% ～ 95% Non-condensing state |
| Audio |
1* Line-out/Mic-in, two in one audio |
|
Other Function |
Power on when there is electricity, network wake up
timed startup, PXE startup(0～255level),TPM2.0
|
| Power supply |
|
|
Application |
Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc |
Applications:
The SMATIPC IEXP-522 is equipped with an Intel Core i7-1255U CPU, making it powerful enough to handle complex applications. It has Mini PCIE with PCIE USB2.0 Protocol, 4G/WIFI/BT, and M.2 with WiFi/BT. It also runs on Windows 10 Pro, providing a user-friendly interface for easy navigation.
The SMATIPC IEXP-522 is suitable for a wide range of applications, including industrial automation, digital signage, transportation, and communications. It is perfect for use in harsh environments, such as factories, warehouses, and construction sites.
