Dual Lan Fanless Mini Computer N100 Synchronous Asynchronous Triple Display

Name: Dual Lan Fanless Mini Computer N100 Synchronous Asynchronous Triple Display
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: IEXP-332
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SMATIPC
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	IEXP-332
Document:	IEXP-332 Ver 1.0.pdf

Detail Information

Place of Origin:

China

Brand Name:

SMATIPC

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

IEXP-332

Document:

IEXP-332 Ver 1.0.pdf

Processor:

N100 Quad Core

GPU:

Intel(R) UHD Graphics

Storage:

128GB/256GB/512GB

Power Supply:

12V/5A

USB:

4 X USB 3.0, 2 X USB2.0

HD-MI Resolution:

4096 X 2160 @ 60Hz

Operating Temperature:

-20°C To 50°C

Humidity:

5%~95%

Highlight:

High Light

Highlight:

fanless mini computer n100

dual lan fanless mini computer

n100 fanless mini pc

Trading Information

Minimum Order Quantity:

Price:

To Be Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-5 Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

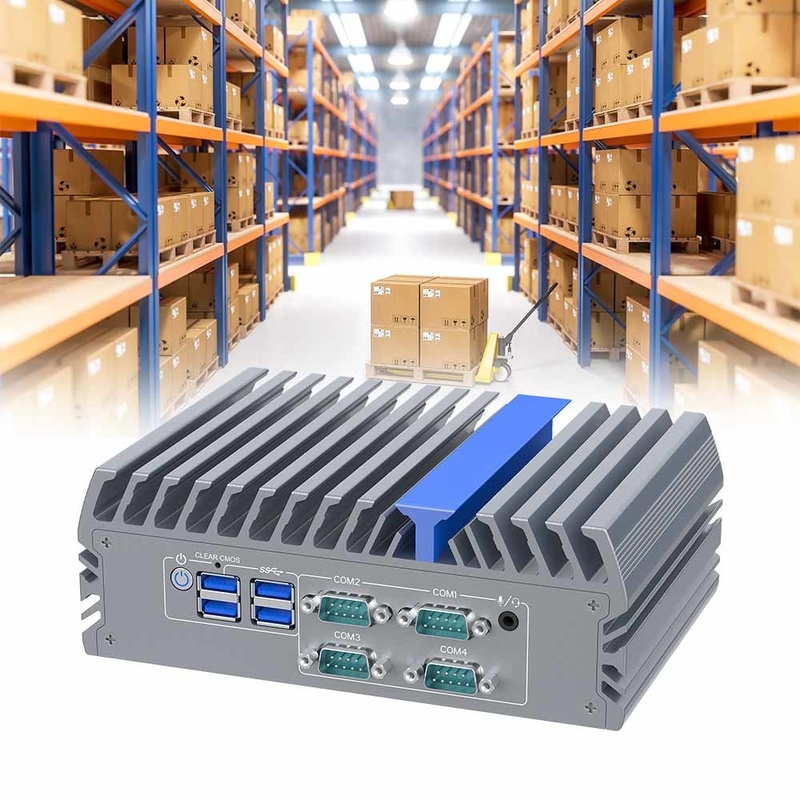

Dual Lan Fanless Mini Computer N100 Synchronous Asynchronous Triple Display

Features:

N100 4K Display Yes Dual LAN Mini PC
Temperature: -20℃~ 50℃
Lan Port: 2 X RTL8111H Gigabit
Cores: 4 Cores
Wireless Connectivity: WiFi/Bluetooth
Graphics: Intel(R) UHD Graphics
Product Type: mini pc 12th gen intel alder lake-n100
Product Form Factor: barebone pc
Network Interface: Dual LAN Mini PC

Technical Parameters:

Parameter		Storage
Processor	Intel N100 (4 core 4 threads, Turbo 3.4 GHz)	M.2	1xM.2 2280 M-key slot (support SATA & PCIE3.0X1 NVME)
Chipset	Alder Lake-N	SATA	1x2.5 inch HDD
Memory	1xDDR4 3200MHz SODIMM, max 16 GB	Expansion
Graphics Card		Mini PCIe	1xfull-length Mini PCIe slot (support PCIE & USB2.0 signal, 4G/WIFI/Bluetooth optional), internal Nano-SIM card slot
Graphics	Intel(R) UHD Graphics
Display	2xHDMI (Resolution 4096 x 2160 @ 60Hz)	Dimension
	1xVGA (Resolution 1920 x 1080 @ 60Hz)	Size	186x127x66 mm 7.3 x 5 x 2.6 inch
Network		Weight	1.36 kg 3.0 lb
Lan Port	2x RTL8111H Gigabit	Installation	VESA, Wall mount, DIN-rail(optional)
I/O		Environment
USB	4xUSB 3.0, 2xUSB2.0	Temperature	-20℃~ +50℃, Surface air flow
COM	4xCOM (COM1/2, RS232/485 optional)	Humidity	5%~95% Non-condensing state
Audio	1xLine-out / Mic Two-in-one	Other Function	Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption
Power Supply
Power supply	1xDC(5.5*2.5mm), support 12V input	Application	Industrial Automation, Medical, Logistics & Transportation, Warehousing, e-education and other fields.

Support and Services:

The Dual Lan Fanless Mini Computer is a powerful and compact device that requires minimal technical support and services. However, in the unlikely event of encountering any issues, our team of technical experts is available to assist you. Our services include:

Remote technical support via phone or email
Diagnostic testing to identify any hardware or software issues
Repair and replacement of faulty components
Software updates and upgrades

We strive to provide timely and efficient support to ensure that your Celeron Mini PC is always up and running smoothly. Please do not hesitate to contact us if you require any assistance.
