Powerful Mini PC N100 Alder-Lake Processor And VESA Mount

Name: Powerful Mini PC N100 Alder-Lake Processor And VESA Mount
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: IEXP-332
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SMATIPC
Certification:	CCC,CE,ROHS,ISO9001
Model Number:	IEXP-332
Document:	IEXP-332 Ver 1.0.pdf

Detail Information

Place of Origin:

China

Brand Name:

SMATIPC

Certification:

CCC,CE,ROHS,ISO9001

Model Number:

IEXP-332

Document:

IEXP-332 Ver 1.0.pdf

Memory:

4 GB DDR4

Ports:

4 X USB 3.0, 2 X USB 2.0, HDMI, VGA, Ethernet

Operating System:

Windows 10

Wake On LAN:

Support

Watchdog:

Support

Dimensions:

186 X 127 X 66 Mm

VESA:

Standard

Weight:

1.36 Kg

Highlight:

High Light

Highlight:

powerful mini pc n100

n100 usb mini pc

alder-lake processor usb mini pc

Trading Information

Minimum Order Quantity:

Price:

To Be Negotiable

Packaging Details:

Each pc for one neutral box

Delivery Time:

3-5 Days

Payment Terms:

T/T,Paypal

Supply Ability:

10000 Pcs/Month

Product Description

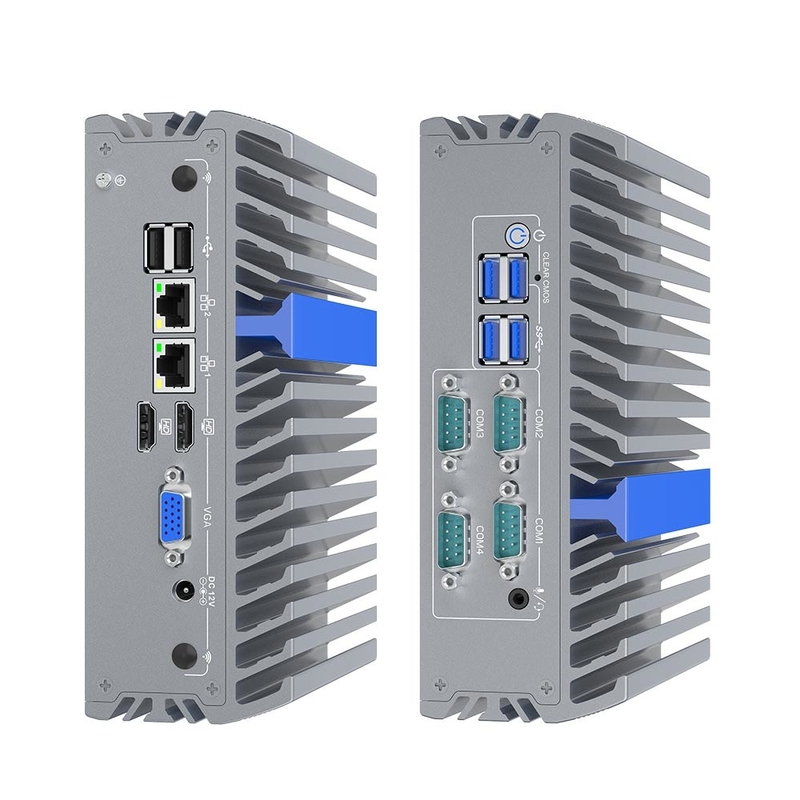

Powerful Mini PC N100 Alder-Lake Processor and VESA Mount

Product Description:

The Mini PC runs on the latest Alder Lake-N processor, delivering fast and efficient performance for all your tasks. With 4 GB DDR4 memory, you can multitask with ease and switch between applications seamlessly.

Designed to support Wake on LAN, this Mini PC can be turned on remotely, making it a perfect choice for businesses that require remote access.

Technical Parameters:

Parameter		Storage
Processor	Intel N100 (4 core 4 threads, Turbo 3.4 GHz)	M.2	1xM.2 2280 M-key slot (support SATA & PCIE3.0X1 NVME)
Chipset	Alder Lake-N	SATA	1x2.5 inch HDD
Memory	1xDDR4 3200MHz SODIMM, max 16 GB	Expansion
Graphics Card		Mini PCIe	1xfull-length Mini PCIe slot (support PCIE & USB2.0 signal, 4G/WIFI/Bluetooth optional), internal Nano-SIM card slot
Graphics	Intel(R) UHD Graphics	Mini PCIe
Display	2xHDMI (Resolution 4096 x 2160 @ 60Hz)	Dimension
Display	1xVGA (Resolution 1920 x 1080 @ 60Hz)	Size	186x127x66 mm 7.3 x 5 x 2.6 inch
Network		Weight	1.36 kg 3.0 lb
Lan Port	2x RTL8111H Gigabit	Installation	VESA, Wall mount, DIN-rail(optional)
I/O		Environment
USB	4xUSB 3.0, 2xUSB2.0	Temperature	-20℃~ +50℃, Surface air flow
COM	4xCOM (COM1/2, RS232/485 optional)	Humidity	5%~95% Non-condensing state
Audio	1xLine-out / Mic Two-in-one	Other Function	Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption
Power Supply		Other Function
Power supply	1xDC(5.5*2.5mm), support 12V input	Application	Industrial Automation, Medical, Logistics & Transportation, Warehousing, e-education and other fields.

Applications:

The SMATIPC IEXP-332 Mini PC is an excellent choice for digital signage applications. Its small size and fanless design mean that it can be easily mounted behind a display or on a wall without being obtrusive. Plus, its powerful processor ensures that it can handle even the most demanding digital signage applications with ease.

Industrial Use

The SMATIPC IEXP-332 Mini PC is built to withstand harsh industrial environments. Its fanless design means that it is completely silent and can operate in dusty or dirty environments without the risk of overheating. Plus, its certifications (CCC, CE, ROHS, ISO9001) ensure that it meets the highest standards for safety and reliability.
