Product Description:

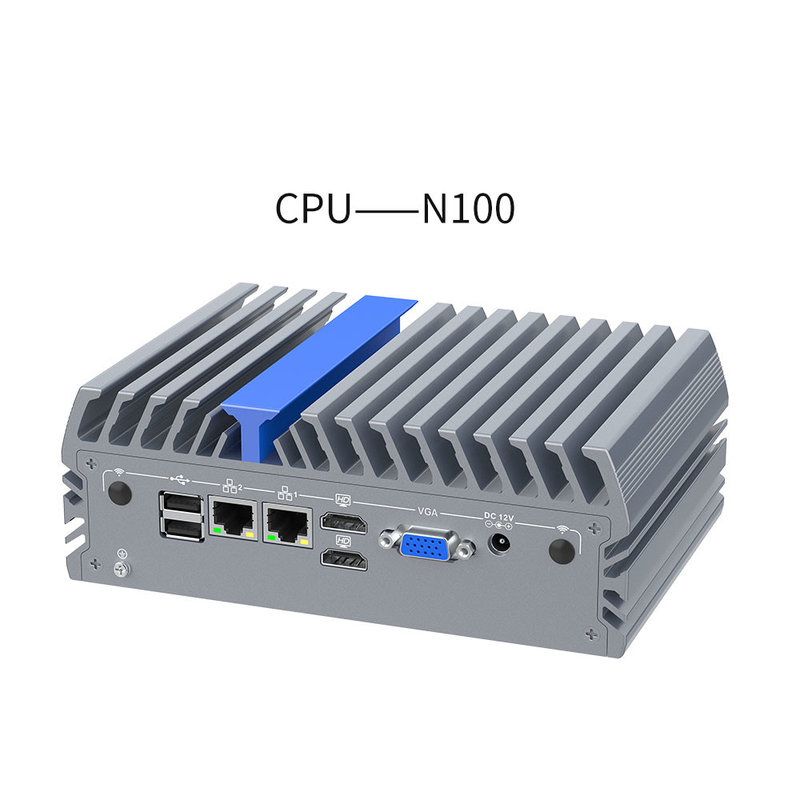

Powered by the Alder Lake-N processor, this mini PC is capable of handling even the most demanding applications. The Intel(R) UHD Graphics provides stunning visuals and smooth video playback for an immersive experience.
The Celeron Mini PC comes with Windows 10 pre-installed, making it easy to get started right out of the box. Plus, with its compact size, this mini PC is perfect for those who want a powerful computer without taking up too much space.
Technical Parameters:
| Parameter |
|
Storage |
| Processor |
Intel N100 (4 core 4 threads, Turbo 3.4 GHz) |
|
M.2 |
1xM.2 2280 M-key slot (support SATA & PCIE3.0X1 NVME) |
| Chipset |
Alder Lake-N |
|
SATA |
1x2.5 inch HDD |
| Memory |
1xDDR4 3200MHz SODIMM, max 16 GB |
|
Expansion |
| Graphics Card |
|
Mini PCIe |
1xfull-length Mini PCIe slot (support PCIE & USB2.0 signal, 4G/WIFI/Bluetooth optional), internal Nano-SIM card slot |
| Graphics |
Intel(R) UHD Graphics |
|
|
|
| Display |
2xHDMI (Resolution 4096 x 2160 @ 60Hz) |
|
Dimension |
| |
1xVGA (Resolution 1920 x 1080 @ 60Hz) |
|
Size |
186x127x66 mm 7.3 x 5 x 2.6 inch |
| Network |
|
Weight |
1.36 kg 3.0 lb |
| Lan Port |
2x RTL8111H Gigabit |
|
Installation |
VESA, Wall mount, DIN-rail(optional) |
| I/O |
|
Environment |
| USB |
4xUSB 3.0, 2xUSB2.0 |
|
Temperature |
-20℃~ +50℃, Surface air flow |
| COM |
4xCOM (COM1/2, RS232/485 optional) |
|
Humidity |
5%~95% Non-condensing state |
| Audio |
1xLine-out / Mic Two-in-one |
|
Other Function |
Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption |
| Power Supply |
|
|
|
| Power supply |
1xDC(5.5*2.5mm), support 12V input |
|
Application |
Industrial Automation, Medical, Logistics & Transportation, Warehousing, e-education and other fields. |
Applications:
SMATIPC IEXP-332 this mini PC is a perfect fit for office use, as it is compact and powerful enough to handle various office tasks. With its 4 GB DDR4 memory and Intel 12th Gen Alder Lake N100 processor, it can run multiple applications and software programs smoothly. Its 2 USB2.0 ports make it easy to connect peripherals such as a mouse, keyboard, and printer.
One of the standout features of the SMATIPC IEXP-332 mini PC is its 2 x LAN ports, making it ideal for use in network-intensive environments. It can be used as a network server, router, or firewall, providing reliable and stable network connectivity.
