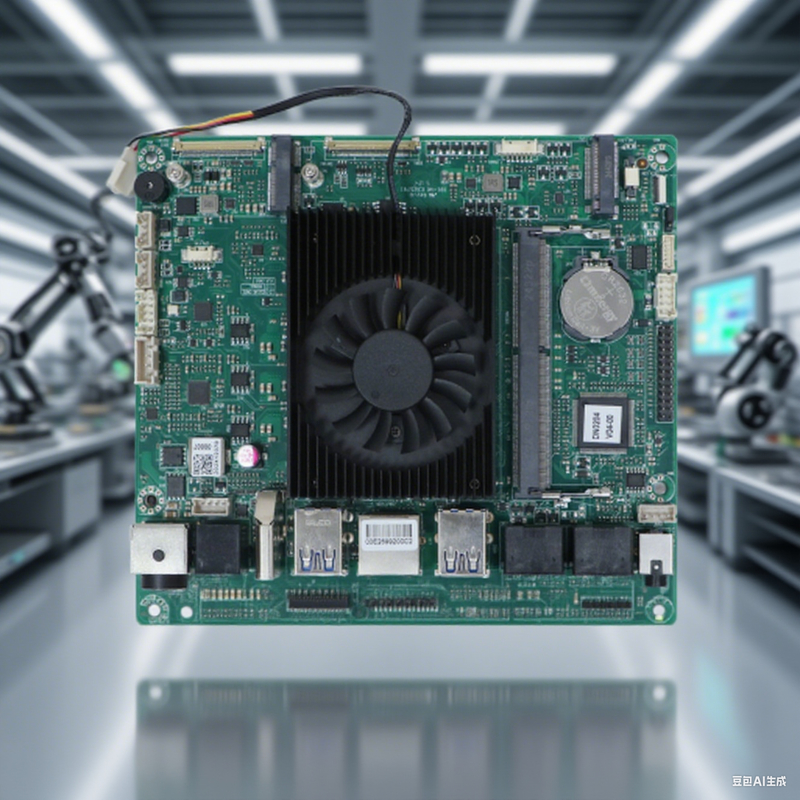

N97 Industrial Motherboard with 4 COM 4 USB DDR4 Ram M.2 SSD
N97 Industrial Motherboard with 4 COM 4 USB DDR4 Ram M.2 SSD
  • N97 Industrial Motherboard with 4 COM 4 USB DDR4 Ram M.2 SSD
  • N97 Industrial Motherboard with 4 COM 4 USB DDR4 Ram M.2 SSD

N97 Industrial Motherboard with 4 COM 4 USB DDR4 Ram M.2 SSD

Product Details:
Place of Origin: China
Brand Name: SMATiPC
Certification: CE,FCC,ROHS
Model Number: H-ADLN01【HE-N97D14-2E】
Detail Information
Place of Origin:
China
Brand Name:
SMATiPC
Certification:
CE,FCC,ROHS
Model Number:
H-ADLN01【HE-N97D14-2E】
PCB Size:
151mm*120mm(L*W)
Processor:
N97
Supported Processors:
4×COM
Lan Ports:
1 X Gigabit Ethernet
USB:
4 X USB3.0 Or 3x USB3.0+1x Type-C
Power Supply:
DC 12/24V
Storage Temperature:
-20~75℃
Other:
1 RJ11 Cash Box Interface
Highlight:

High Light

Highlight:

mini pc motherboards

,

motherboards for pc

,

industrial motherboard

Trading Information
Minimum Order Quantity:
1
Price:
68-78
Packaging Details:
Netural
Delivery Time:
5-7 Days For Sample
Payment Terms:
T/T,Credit Card,PayPal
Supply Ability:
10000 Pcs/month
Product Description
N97 Industrial Motherboard with 4 COM 4 USB DDR4 Ram M.2 SSD
Product Specifications
Attribute Value
PCB Size 151mm*120mm(L*W)
Processor N97
Supported Processors 4×COM
Lan Ports 1 x Gigabit Ethernet
USB 4 x USB3.0 or 3x USB3.0+1x type-C
Power Supply DC 12/24V
Storage temperature -20~75℃
Other 1 RJ11 cash box interface
Product Overview
Powered by the Intel N97 processor, this industrial motherboard supports HDMI/EDP dual display outputs, making it ideal for multi-screen applications including point-of-sale systems, digital signage, and industrial automation. With 16GB DDR4 support, 10 USB ports, and M.2 KEY-E for Wi-Fi/Bluetooth expansion, it offers exceptional connectivity options. Features like watchdog timers and network wake-up ensure reliable 24/7 operation.
Technical Specifications
Technical Parameter Details
Size 151mm*120mm(L*W)
GPU Intel® UHD Graphics
Storage 1 X SATA3.0, 1xM.2 2242/2280
Display Three independent display interfaces HDMI+EDP+EDP support three displays
The maximum HDMI resolution is 4096x2160@30Hz
The maximum resolution of eDP is 1920*1080@60Hz
Memory Type DDR4
Lan 1 X Intel 1000M LAN
USB 4*USB3.0
Auto power on Support
Operating system Windows 10/11, Server 2019, Linux
