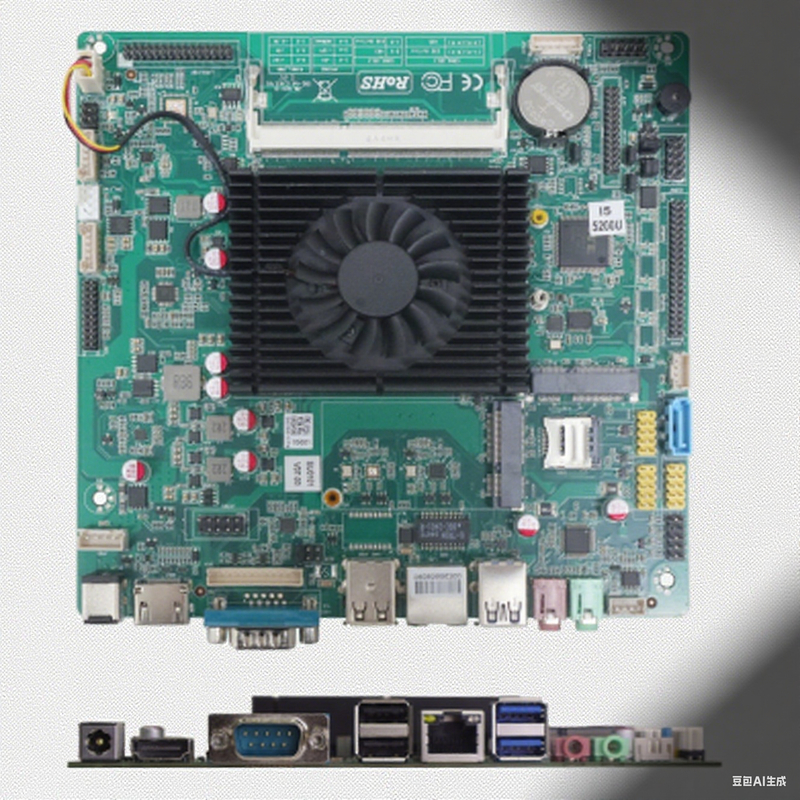

Multi-Display Motherboard Mini Pc HDM VGA EDP LVDS Support

Name: Multi-Display Motherboard Mini Pc HDM VGA EDP LVDS Support
Brand: Shenzhen Xin Saike Technology Co.,Ltd.
SKU: H-HSWU01
Price: 62.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SMATiPC
Certification:	CE,FCC,ROHS
Model Number:	H-HSWU01

Detail Information

Place of Origin:

China

Brand Name:

SMATiPC

Certification:

CE,FCC,ROHS

Model Number:

H-HSWU01

PCB Size:

170mm*170mm(L*W)

Processor:

I3-4200U I5-5200U I7-4500U I5-5200U I7-5500U

Supported Processors:

2 × COM

Lan Ports:

1 X Gigabit Ethernet

Expansion:

MSTA,WIFI/3G

Power Supply:

DC 12V

Display:

HDMI+EDP+EDP

Highlight:

High Light

Highlight:

Motherboard Mini Pc

mini pc motherboard with gpu

mini pc motherboard ryzen

Trading Information

Minimum Order Quantity:

Price:

45-80

Packaging Details:

Netural

Delivery Time:

5-7 Days For Sample

Payment Terms:

T/T,Credit Card,PayPal

Supply Ability:

10000 Pcs/month

Product Description

Multi-Display Motherboard Mini PC with HDM, VGA, EDP, and LVDS Support

Key Features

Compact 170mm × 170mm form factor
Supports 4th/5th Gen Intel Core i3/i5/i7 processors
Dual LAN ports with Gigabit Ethernet capability
Multiple display outputs including HDMI, VGA, LVDS, and eDP
Wide operating temperature range (-20°C to 75°C)
12V DC power supply with vibration-resistant design

Product Overview

This high-density connectivity SBC is engineered for intelligent transportation and fleet management systems. The embedded board features optional dual LAN with PoE support for IP camera integration. With its 4th Gen Intel low-power CPU, it delivers energy-efficient performance for vehicle-mounted computers and ticketing machines. The robust design includes M12 connector-ready Ethernet ports, wide voltage input (9-36V DC), and multiple display outputs (VGA+LVDS) with CAN bus interface, making it ideal for public transit and logistics tracking applications.

Technical Specifications

Parameter	Details
PCB Size	170mm × 170mm (L × W)
Processor	Intel 4th/5th Core i3/i5/i7 or Celeron
GPU	Intel HD Graphics
Memory	1 × DDR3 slot (max 8GB)
Display Ports	1 × VGA (1920×1080@60Hz) 1 × HDMI (2560×1600@60Hz) 1 × LVDS/eDP (1920×1200@60Hz) 1 × eDP (1920×1200@60Hz)
LAN Ports	2 × RJ45 RTL8111H Gigabit Ethernet
Operating Temperature	-20°C to 75°C
Operating Humidity	10% to 90% (non-condensing)
Power Supply	DC 12V
